Smart MIC System

DS-602SC Chairman Unit

HUSHAN

DS-602SC

¥499.00

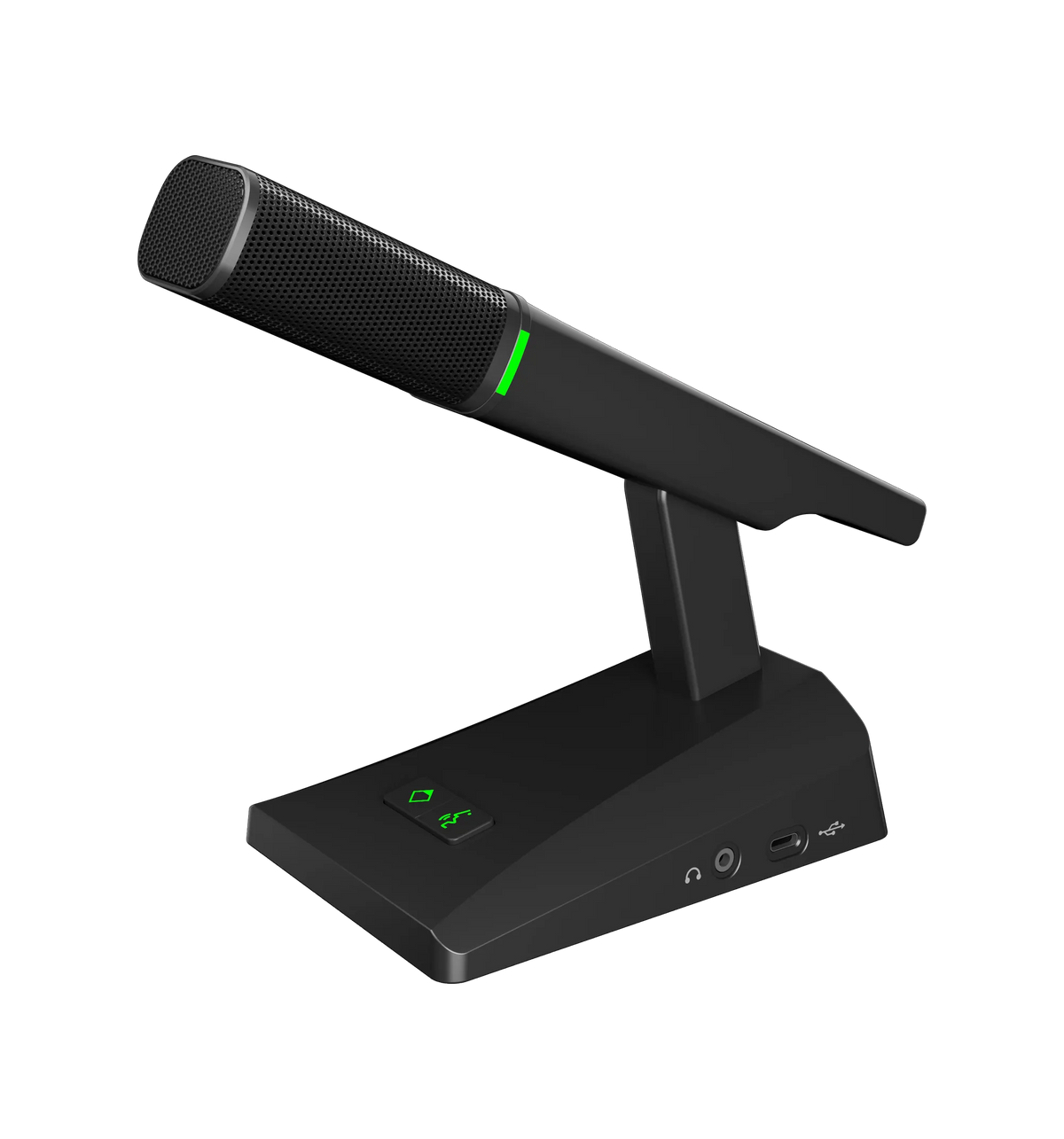

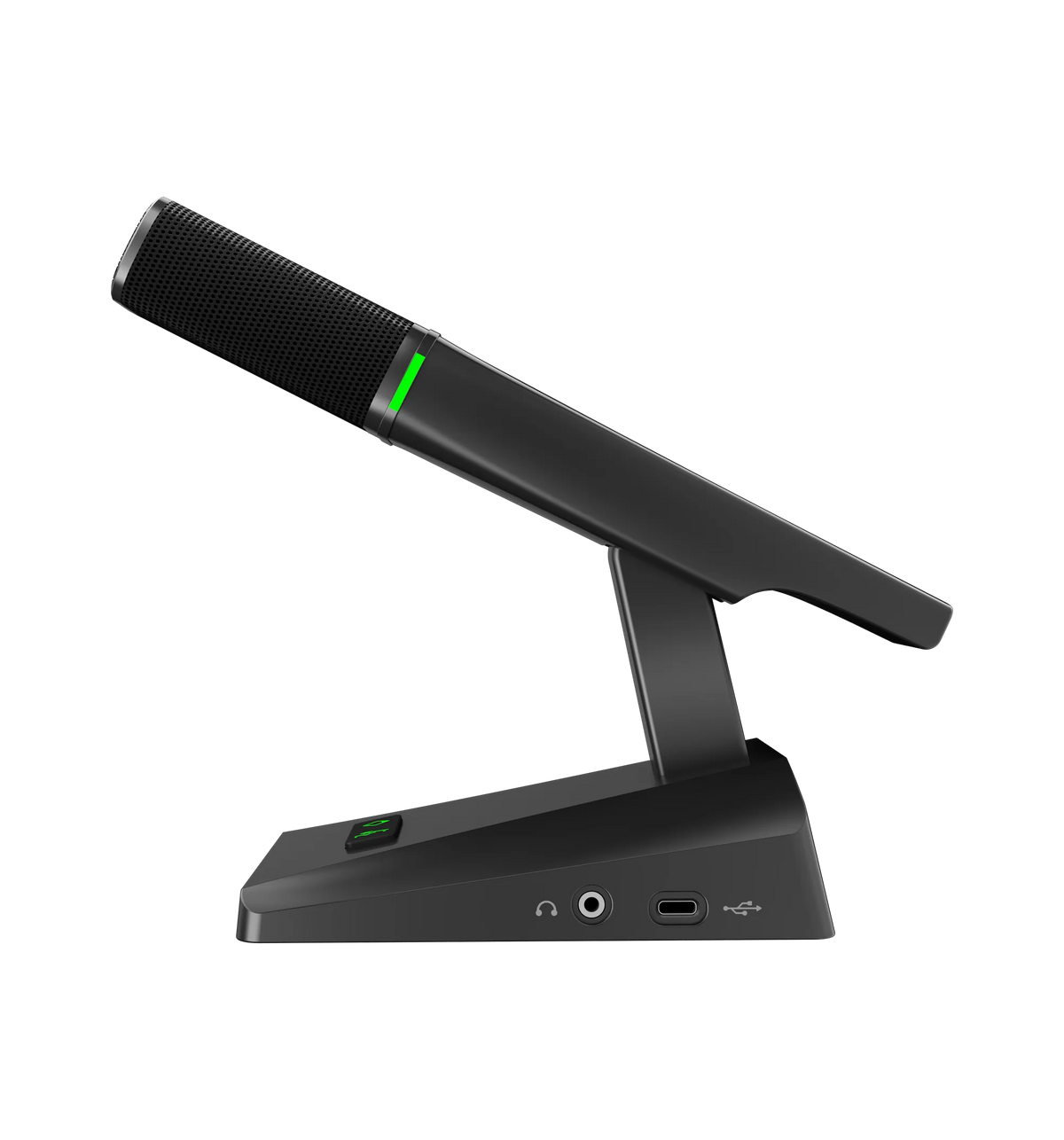

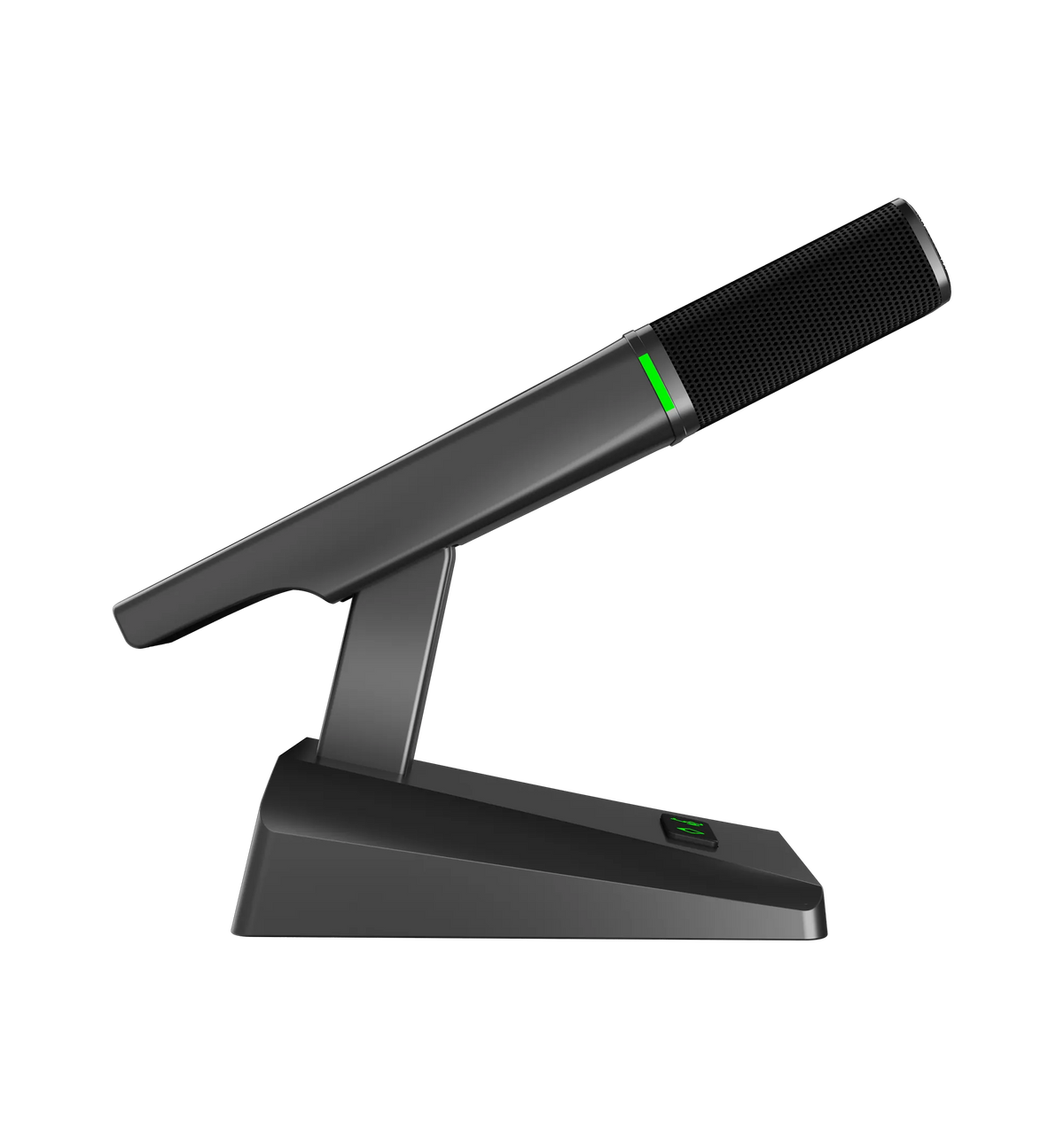

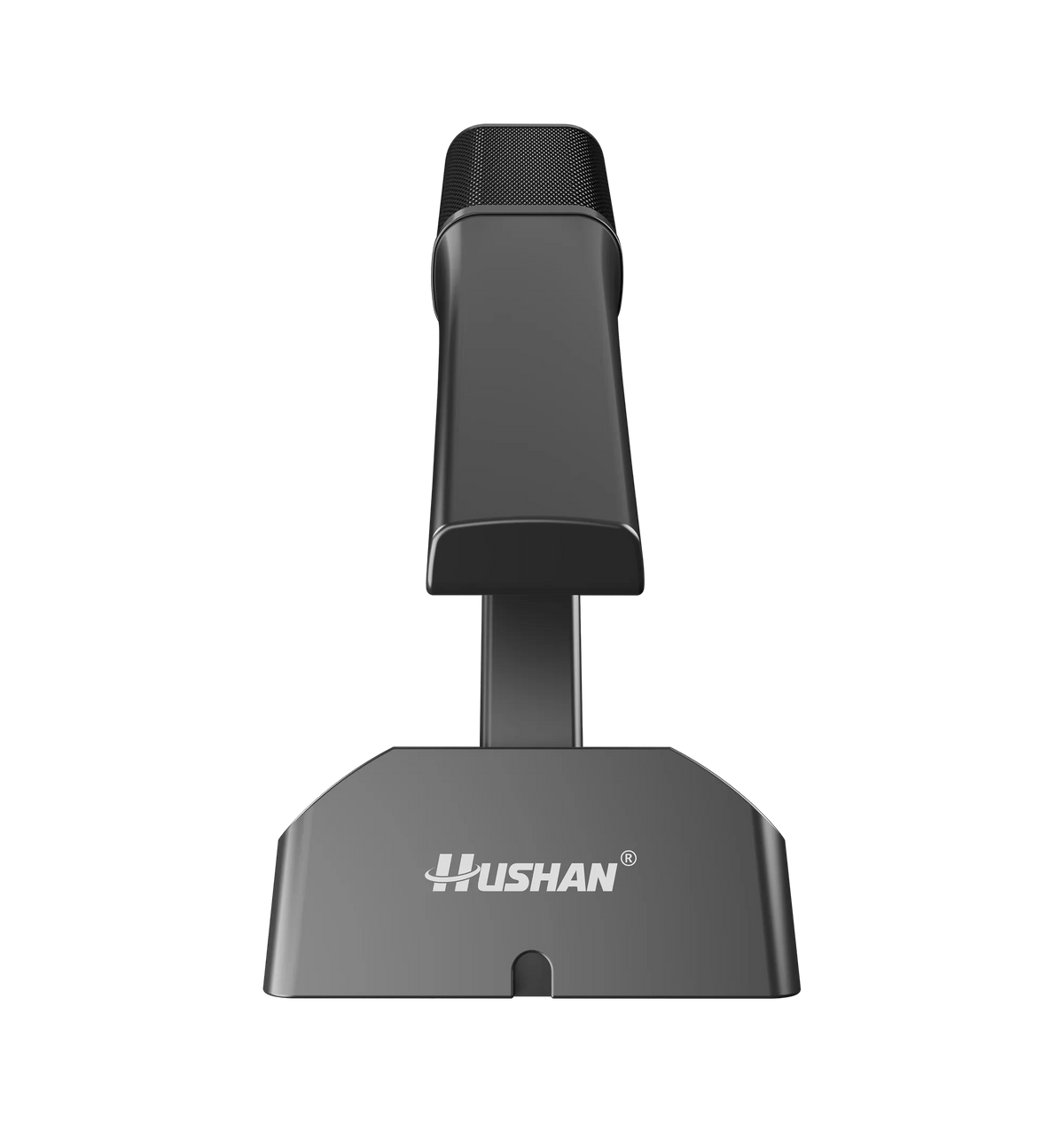

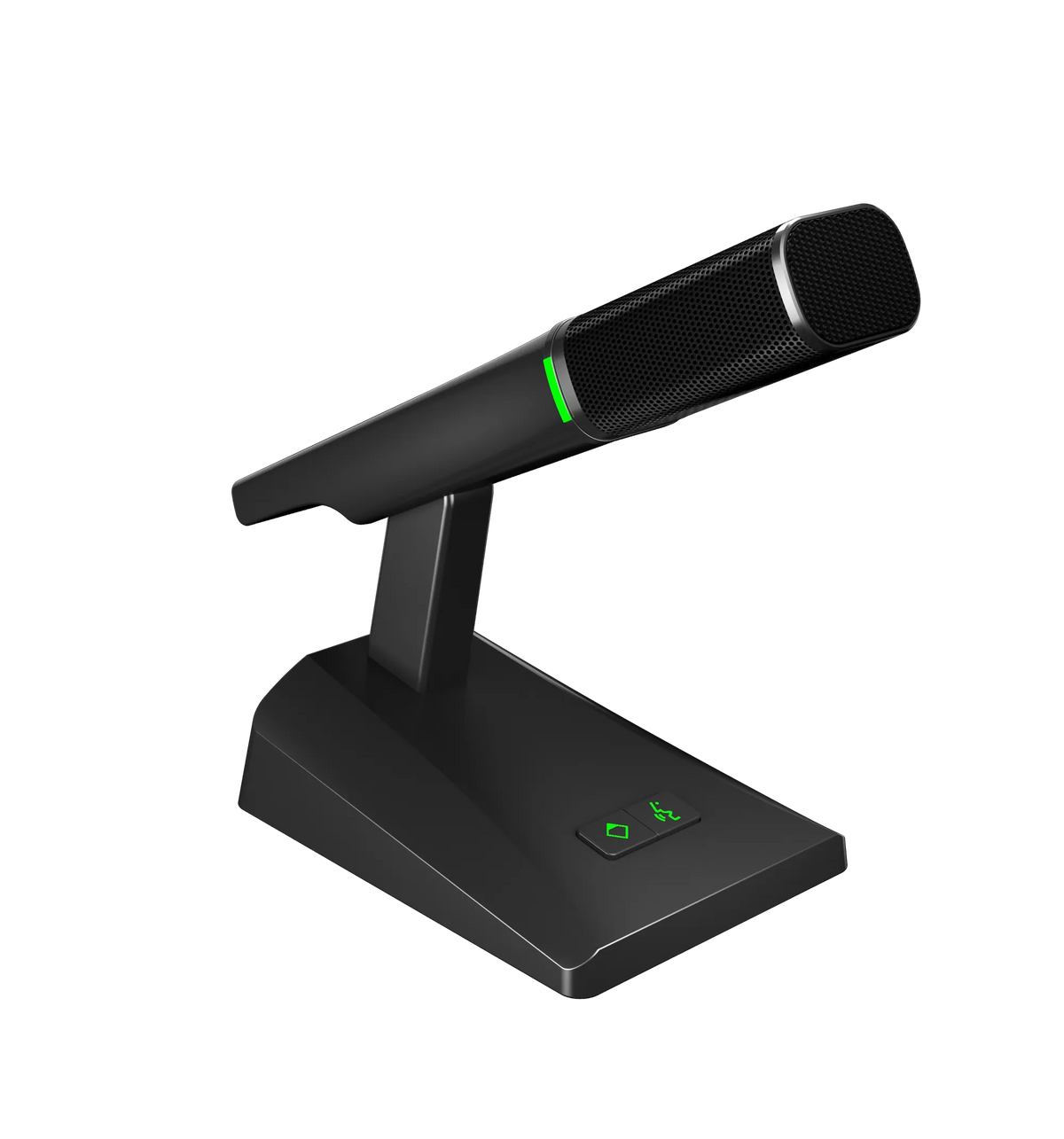

DS-602SC is a compact chairman conference unit with a full-metal base, short gooseneck design, 8-core hand-in-hand connection, Type-C data interface, 3.5 mm headphone monitoring, ID addressing, and camera-tracking support.

Request a Quote

Product documents available on request

Support scope confirmed for each order

Technical Specifications

Base	Full-metal base
Connection	1 x 8-core interface
Data Interface	Type-C
Monitoring	3.5 mm headphone monitoring
Transducer	Condenser
Polar Pattern	Supercardioid
Frequency Response	60 Hz - 20 kHz
SNR	?70 dBA
Supply Voltage	DC24V
Gooseneck Length	225 mm

Smart MIC Xingyu Series

DS-602SC Chairman Unit

Role

Chairman Unit

A compact metal-base chairman unit for structured meeting control.

System Fit

Smart MIC conference ecosystem

Designed to work with HUSHAN master controllers, wired or wireless terminals, expansion hubs, and conference-room management workflows.

Source-Based Specs

Built from HUSHAN product data

The page content is based on the provided product information file and avoids unsupported certification or performance claims.

225 mm Gooseneck

8-core System connection

DC24V Supply voltage

?70 dBA SNR

Chairman unit role

Chairman terminals are not limited by quantity or seat position in the source system design.

Metal-base construction

The unit uses a full-metal base and short gooseneck conference-terminal form factor.

Monitoring and data ports

Type-C data and 3.5 mm headphone monitoring interfaces support setup and seat-level listening.

8-core hand-in-hand wiring

The 8-core interface supports bus hand-in-hand and ring-loop backup connection.

Hot-plug support

Replacing one or more terminals does not affect the operation of other terminals in the system.

Camera tracking ready

ID addressing supports camera tracking workflows from the conference controller.

DS-602SC Chairman Unit application image

Product Application

A compact metal-base chairman unit for structured meeting control.

The scene image is generated from the real source product photo and used only in the lower detail page to explain application context.

System Context

Designed as Part of a Managed Conference System

Smart MIC products are used together as a system: the controller manages roles and modes, terminals capture speech, receivers add wireless access, and expansion hubs scale wired seat counts.

Installation Use

Clear Operation for Formal Meeting Rooms

The system supports structured meetings in council chambers, corporate boardrooms, command rooms, education spaces, and other rooms where speaking order and audio reliability matter.

Project Workflow

How It Fits Into a Smart MIC Project

Connect the system core

Connect the master controller, receiver, expansion hub, and microphone terminals according to the required wired or wireless room layout.

Assign roles and meeting modes

Set terminal IDs, chairman/delegate/VIP roles, speaking limits, request queues, timers, and operating modes from the controller or management software.

Operate the meeting

Participants speak through managed terminals while the system handles microphone state, queue behavior, camera tracking support, and stable speech transmission.

Maintain and expand

Use hot-plug support, network expansion, and monitoring workflows to keep the system reliable as the room grows.

Applications

Where It Fits

Government and council chambers

Role-based chairman/delegate workflows, camera-tracking support, and structured speaking modes fit formal meeting rooms.

Corporate conference centers

Managed microphone operation and clean terminal layouts help executive rooms, boardrooms, and hybrid meeting spaces stay orderly.

Large conference systems

Expansion hubs, mixed wiring options, and hot-plug support help integrators scale the system across more seats and more rooms.

Base Full-metal base

Connection 1 x 8-core interface

Data Interface Type-C

Monitoring 3.5 mm headphone monitoring
