Central controller for intelligent conference systems
DS-D630M coordinates microphones, meeting modes, wired and wireless terminals, camera tracking, HDMI routing, audio processing, and system management from a 2U unit.
Smart MIC System
DS-D630M AI Conference Master Controller
HUSHAN
DS-D630M
¥3,599.00
AI conference master controller for wired and wireless meeting systems, combining microphone management, DSP processing, camera tracking, 4 x 4 HDMI matrix switching, and large-system expansion.
Product documents available on request
Support scope confirmed for each order
Technical Specifications
| Power Supply | AC 220-240V, 50/60 Hz |
| Power Consumption | 350W |
| Audio Latency | <=4 ms |
| Frequency Response | 20 Hz - 20 kHz |
| THD+N | <=0.2% |
| Wired Capacity | 120 units (8P-DIN) + 60 units (RJ45) per host |
| Cascade Capacity | Up to 255 voting units / 4,096 delegate units |
| Camera Protocols | PELCO-D / VISCA |
| HDMI Matrix | 4 x 4, up to 3840 x 2160 @ 30Hz |
| Rack Height | 2U |
| Dimensions | 484 x 88 x 325 mm |
AI Conference System
Master Controller for Intelligent Meeting Rooms and Large Conference Systems
DS-D630M is the central controller for HUSHAN conference systems. It handles microphone roles and modes, wired and wireless terminal access, audio processing, camera tracking, HDMI switching, remote management, and large-system expansion from a 2U rack unit.
One control core for audio, video, and meeting logic
Instead of separate devices for mic control, video routing, camera tracking, and system management, integrators can build a clearer conference topology around one controller.
Council chambers, boardrooms, command centers
Use it where speaker tracking, video routing, stable microphone control, and expansion capacity matter.
2U
Rack Controller
4 x 4
HDMI Matrix
8
Camera Control
<=4 ms
System Latency
Wired and wireless system control
The controller can manage wired and wireless terminals together, with chairman, delegate, and VIP identities supported in one conference system.
AI-assisted speech processing
Built-in noise cancellation, digital EQ, AGC, and adaptive feedback suppression help maintain clear speech in demanding rooms.
4 x 4 HDMI matrix
Four HDMI inputs and four HDMI outputs support video routing up to 4K30 for camera and meeting-room display workflows.
Camera auto-tracking ready
Up to 8 cameras can be controlled through RS-232/422/485 using PELCO-D or VISCA protocols for active-speaker tracking.
Large-system expansion
The source specification lists cascade expansion up to 255 voting units or 4096 delegate units, depending on system configuration.
Remote and role-based management
TCP/IP IoT control, service calls, separated output roles, hot-plug support, and optional Dante, fiber, or coax modules support project integration.
Conference System
Audio, Video, Camera Tracking, and Control in One System Core
DS-D630M is positioned as the control center of a conference system, coordinating terminal roles, meeting modes, video routing, camera tracking, and remote management for formal meeting environments.
System Control
A 2U Control Core for Complex Meetings

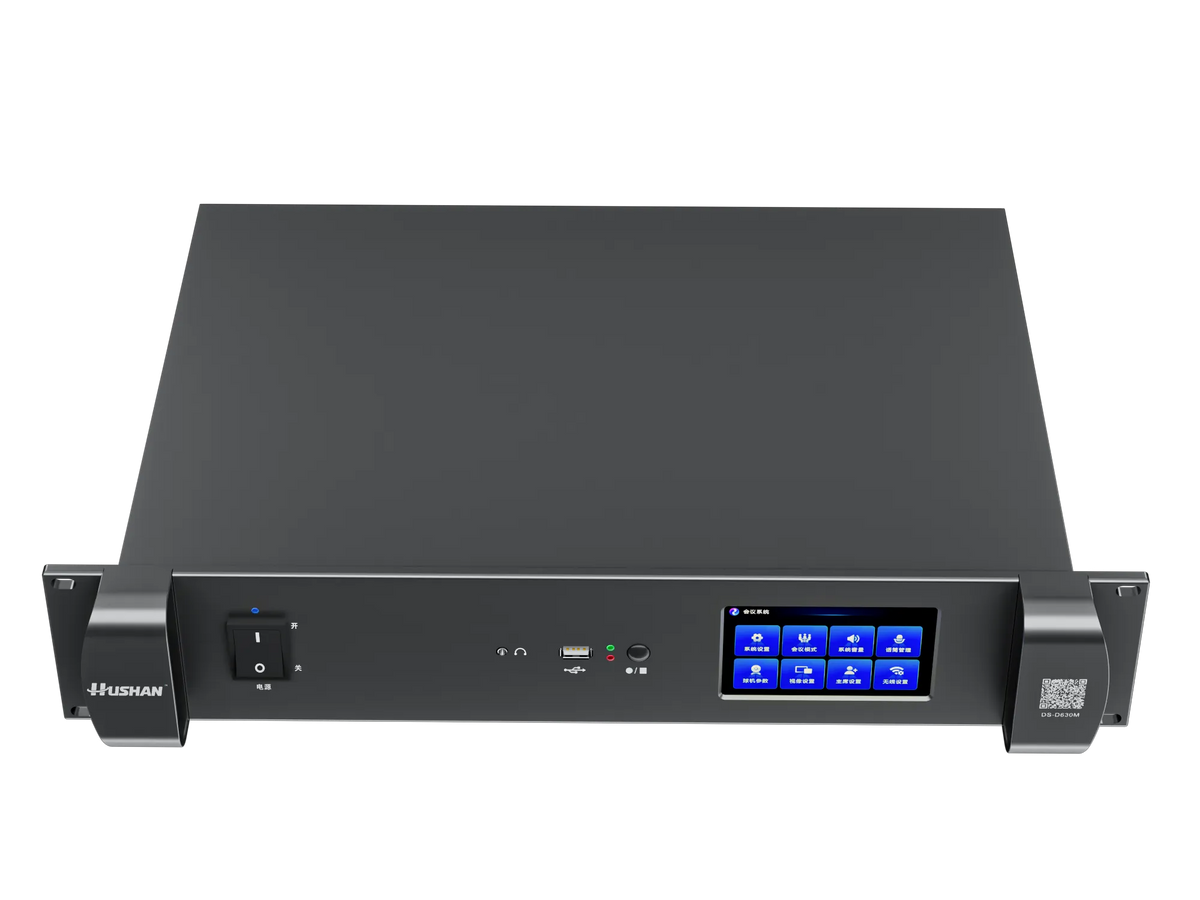

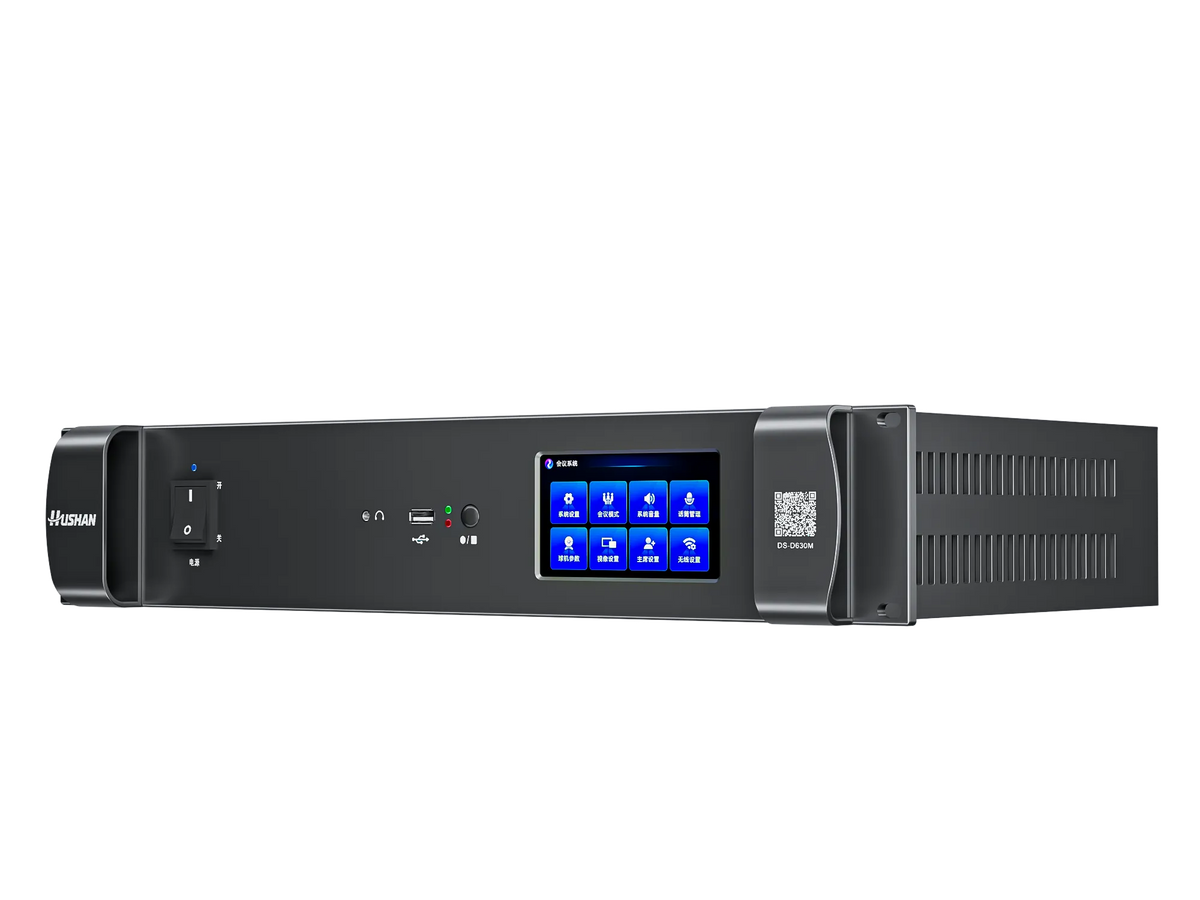

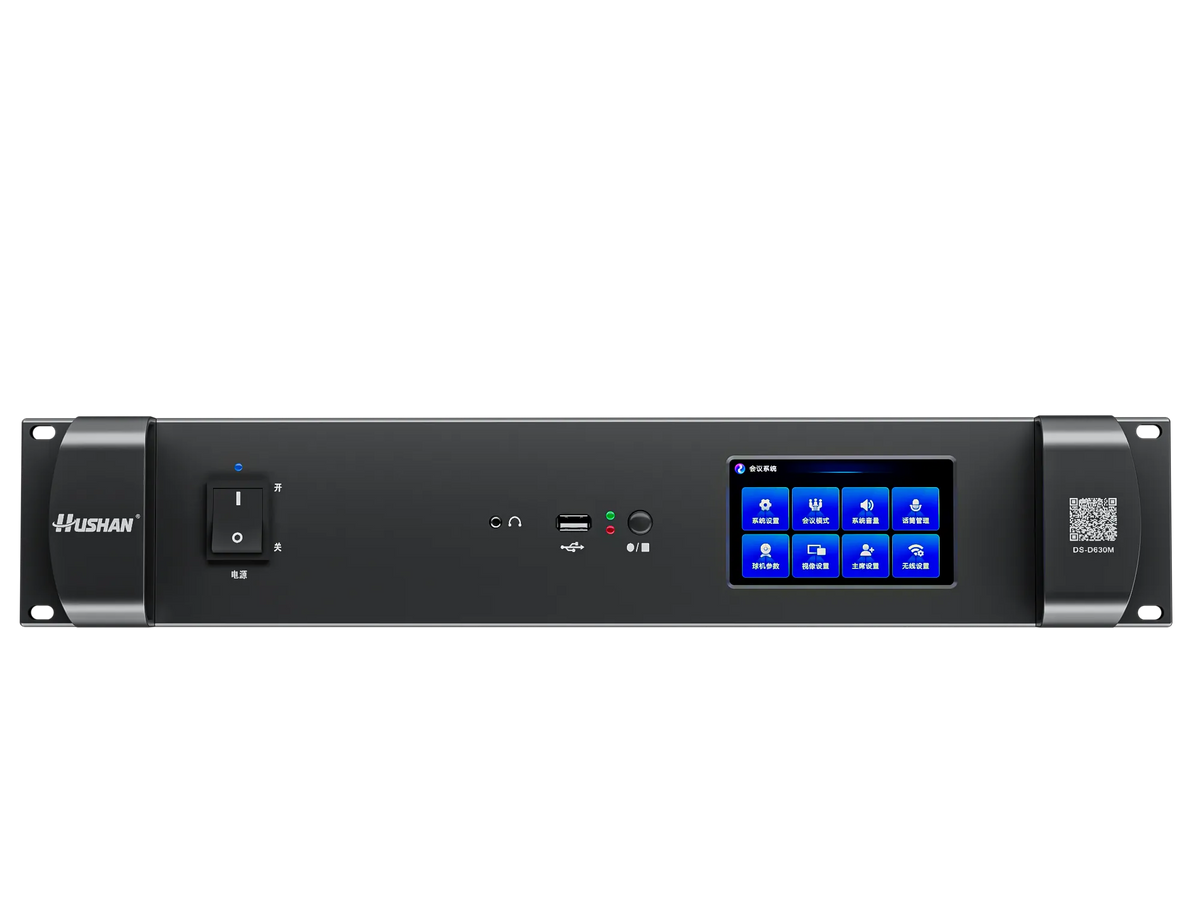

The DS-D630M is designed for rooms where audio, microphones, camera routing, and display switching must work together. Its embedded processor, touch screen, and network control reduce dependence on external computers for daily operation.
Rack Integration
Conference Audio, Video, and Control in One Controller

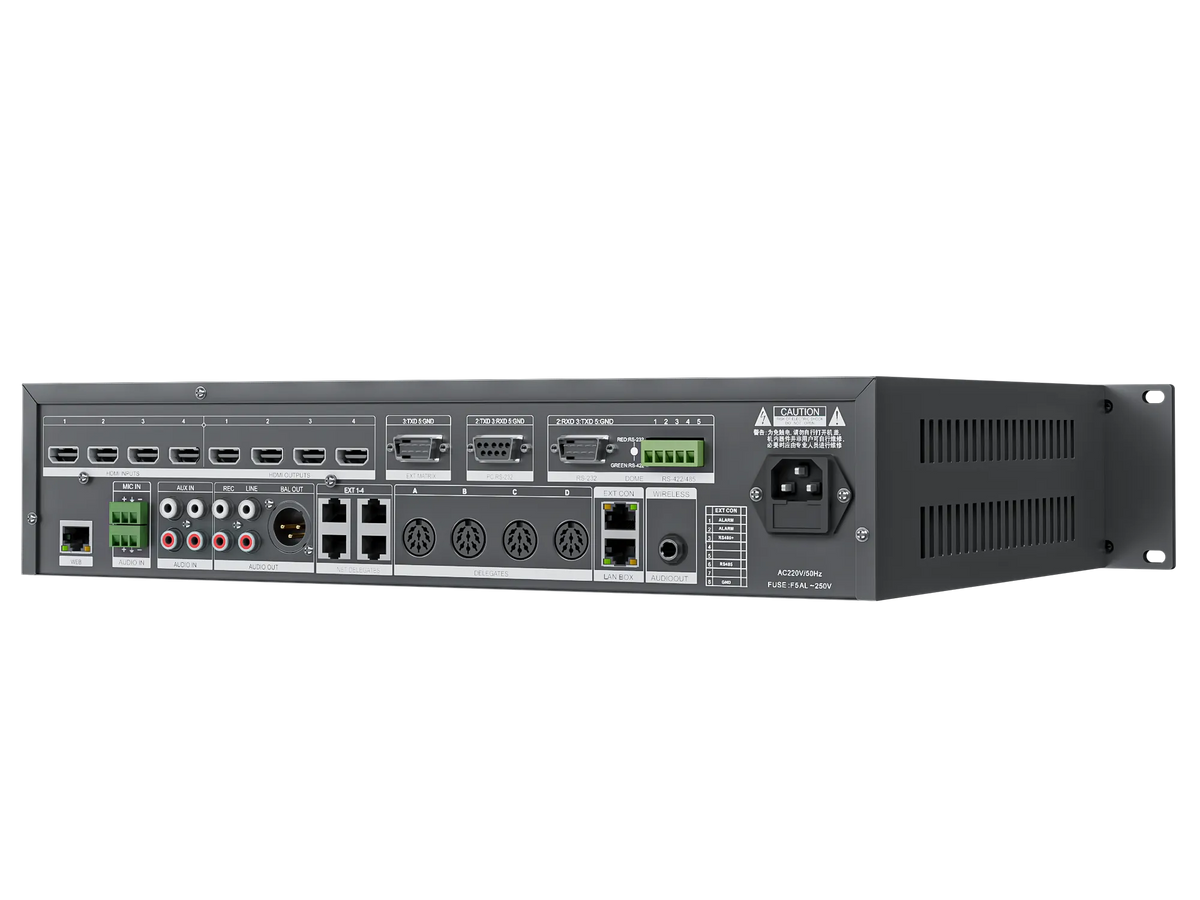

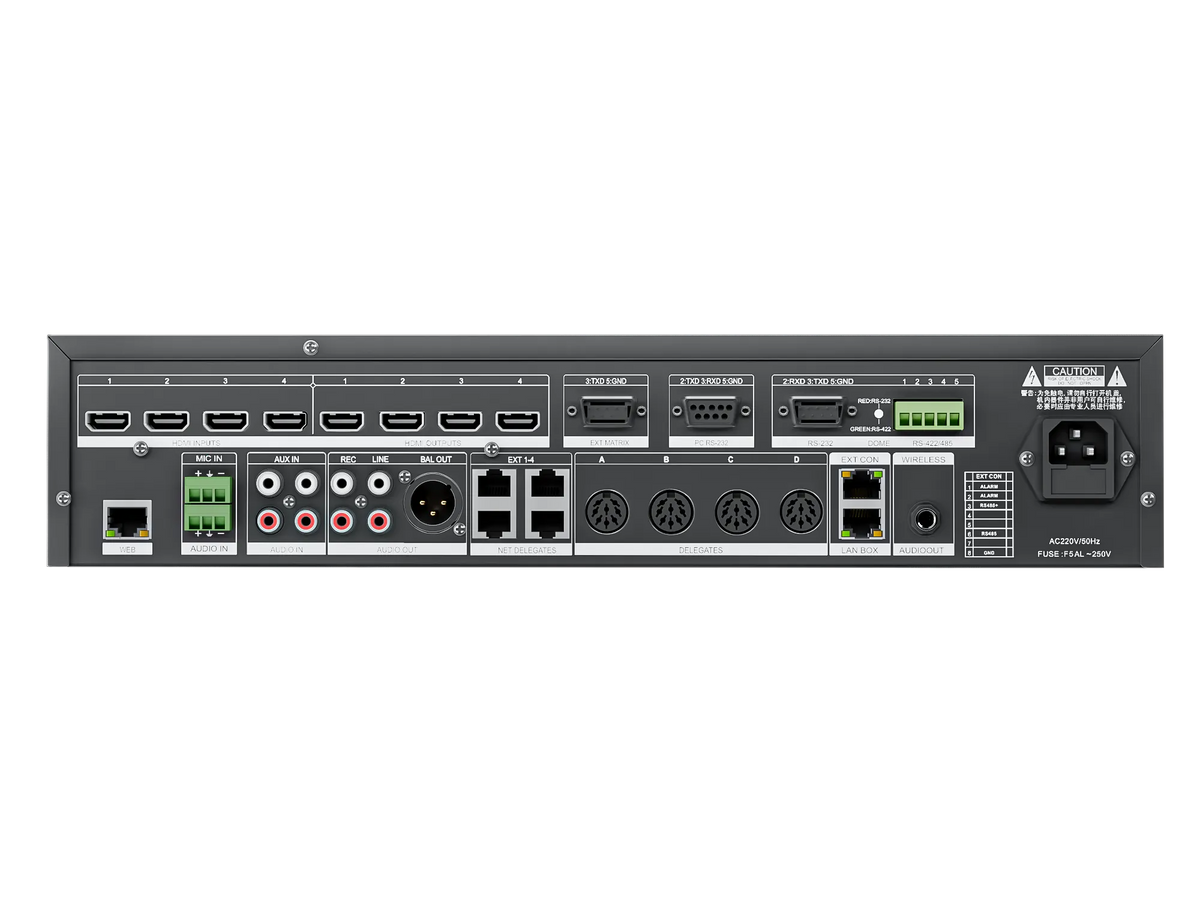

Rear-panel connectivity supports HDMI matrix switching, analog audio, camera control, network management, and conference terminal expansion. For integrators, this means fewer separate devices and clearer system topology.
Integration Flow
How DS-D630M Builds a Conference System
Connect terminals
Combine wired and wireless chairman, delegate, and VIP terminals as required by the room.
Configure meeting rules
Set meeting modes, microphone counts, timers, roles, and audio output routing.
Link cameras and HDMI
Route HDMI sources and control PTZ cameras through supported serial protocols.
Operate and expand
Use TCP/IP management, hot-plug support, and cascade expansion for larger systems.
Applications
Designed For
Government and council chambers
Large terminal capacity, camera tracking, voting expansion, and backup support fit formal decision-making rooms.
Corporate conference centers
HDMI matrix routing, mixed terminal support, and remote management suit multi-purpose executive meeting spaces.
Command and emergency rooms
Reliable microphone control, video routing, and role-separated outputs support high-pressure communication environments.
Video routing
4 HDMI inputs and 4 HDMI outputs, up to 4K30.
Conference modes
The source lists 8 meeting modes with timer and mic-count controls.
Expansion
Large-system capacity depends on configuration and terminal type.
