Clear classroom sound
A two-way design supports clear, full, and soft reproduction for speech and music in teaching rooms.
Classroom Speaker & Amplifier Series
HY100 Classroom Wall-Mount Speaker
Hushan
HY100
¥0.00
The HY100 is a compact wall-mount classroom speaker for teaching spaces and multimedia classrooms. It uses a two-way speaker design, MDF cabinet, steel grille, and dedicated wall bracket for clear speech and practical music playback.
Contact for Availability
Request a Quote
Product documents available on request
Support scope confirmed for each order
Technical Specifications
| Product Type | Classroom wall-mount speaker |
| Speaker Design | Two-way |
| Rated / Peak Power | 60 W / 240 W |
| Rated Impedance | 8 Ω |
| Sensitivity | 89 dB/W/m |
| SPL | 107 dB/W/m continuous; 113 dB/W/m peak |
| Rated Frequency Range | 90 Hz – 20 kHz |
| Speaker Units | LF: 6.5 in; HF: 3 in paper-cone tweeter |
| Cabinet Material | 15 mm MDF |
| Input Interface | Connection box |
| Mounting | Dedicated wall bracket |
| Dimensions | 372 × 228.6 × 209 mm, H × W × D |
| Weight | 4.7 kg |
Education Audio
HY100 Classroom Wall-Mount Speaker
The HY100 is a compact wall-mount classroom speaker for teaching spaces and multimedia classrooms. It uses a two-way speaker design, MDF cabinet, steel grille, and dedicated wall bracket for clear speech and practical music playback.
Durable cabinet
The MDF enclosure uses a white speckled paint finish for a clean appearance and practical durability.
Adjustable installation
The included wall bracket allows flexible horizontal and vertical angle adjustment.
Compact appearance
The small, modern cabinet shape is designed to blend into classroom environments.
60 W
Rated Power
240 W
Peak Power
8 Ω
Impedance
4.7 kg
Weight
Clear classroom sound
A two-way design supports clear, full, and soft reproduction for speech and music in teaching rooms.
Durable cabinet
The MDF enclosure uses a white speckled paint finish for a clean appearance and practical durability.
Adjustable installation
The included wall bracket allows flexible horizontal and vertical angle adjustment.
Compact appearance
The small, modern cabinet shape is designed to blend into classroom environments.

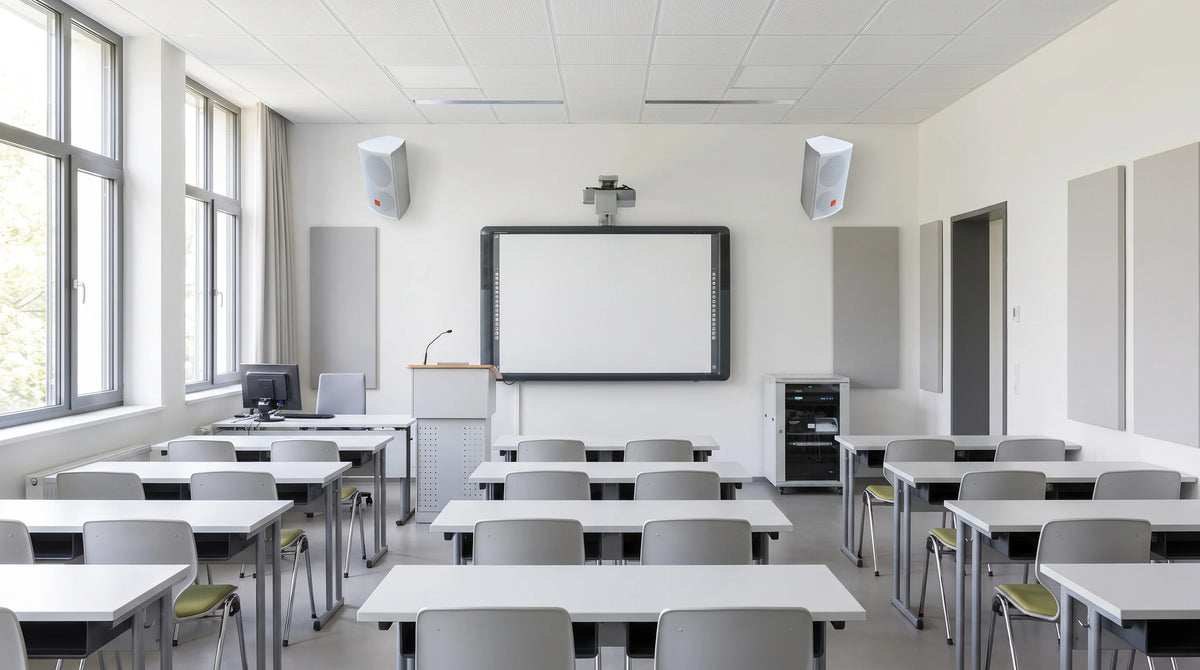

Application Scene
Designed for real education audio environments
This AI-assisted application scene is generated from the real product reference image to show typical classroom or training-room deployment context. Exact product specifications remain in the technical table.

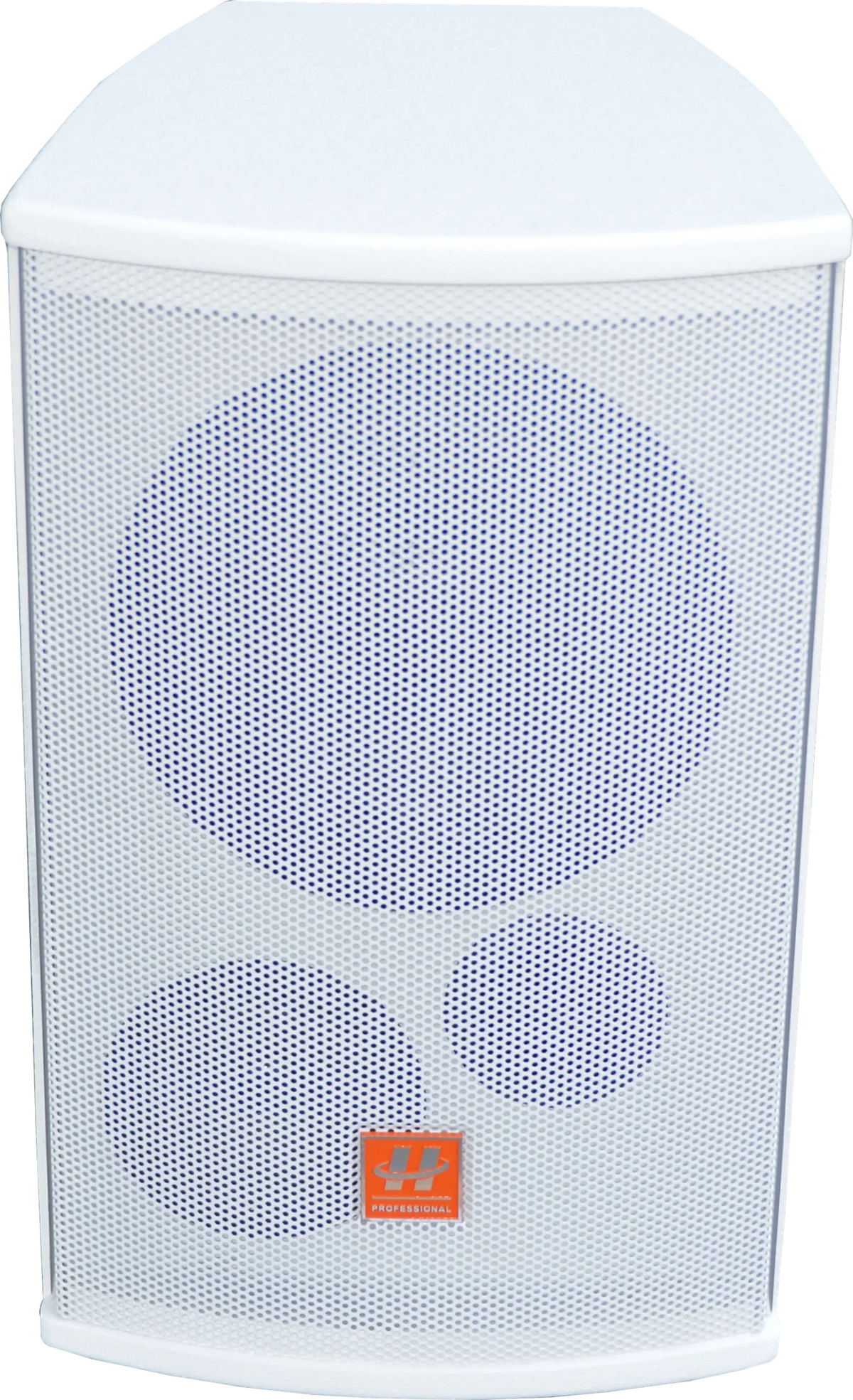

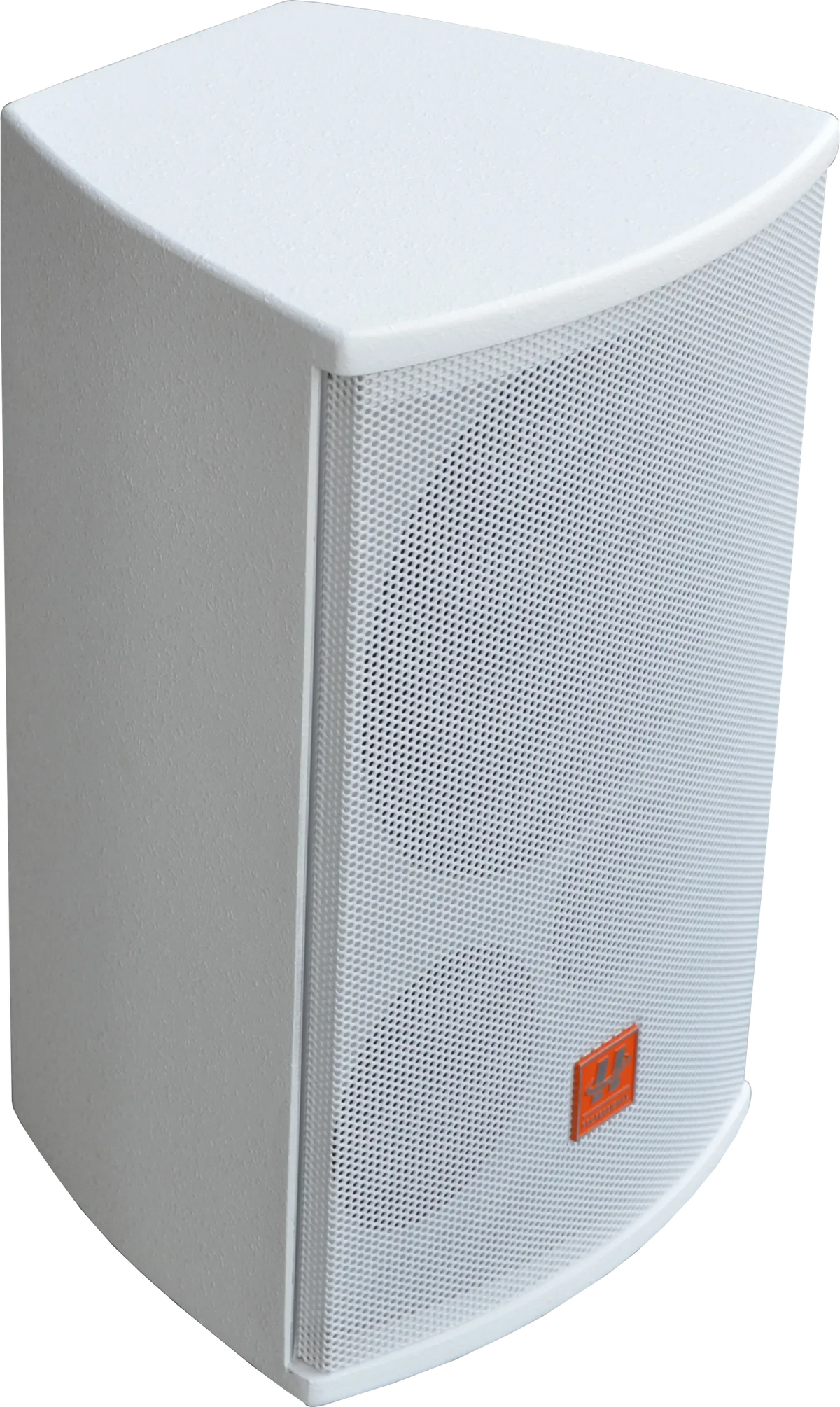

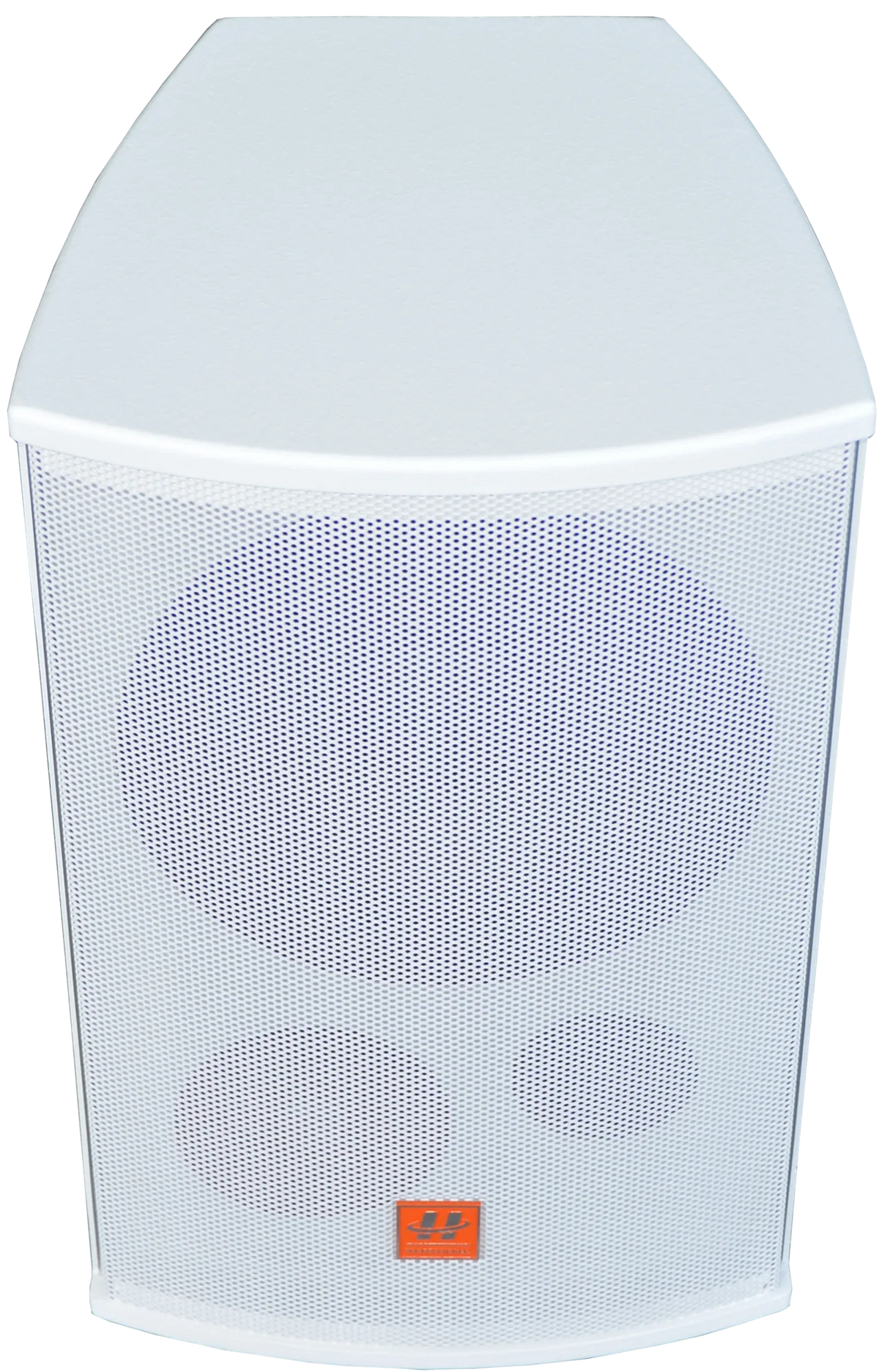

Product View
Front and form factor
Real product imagery is used as the primary source for customer-facing product presentation.

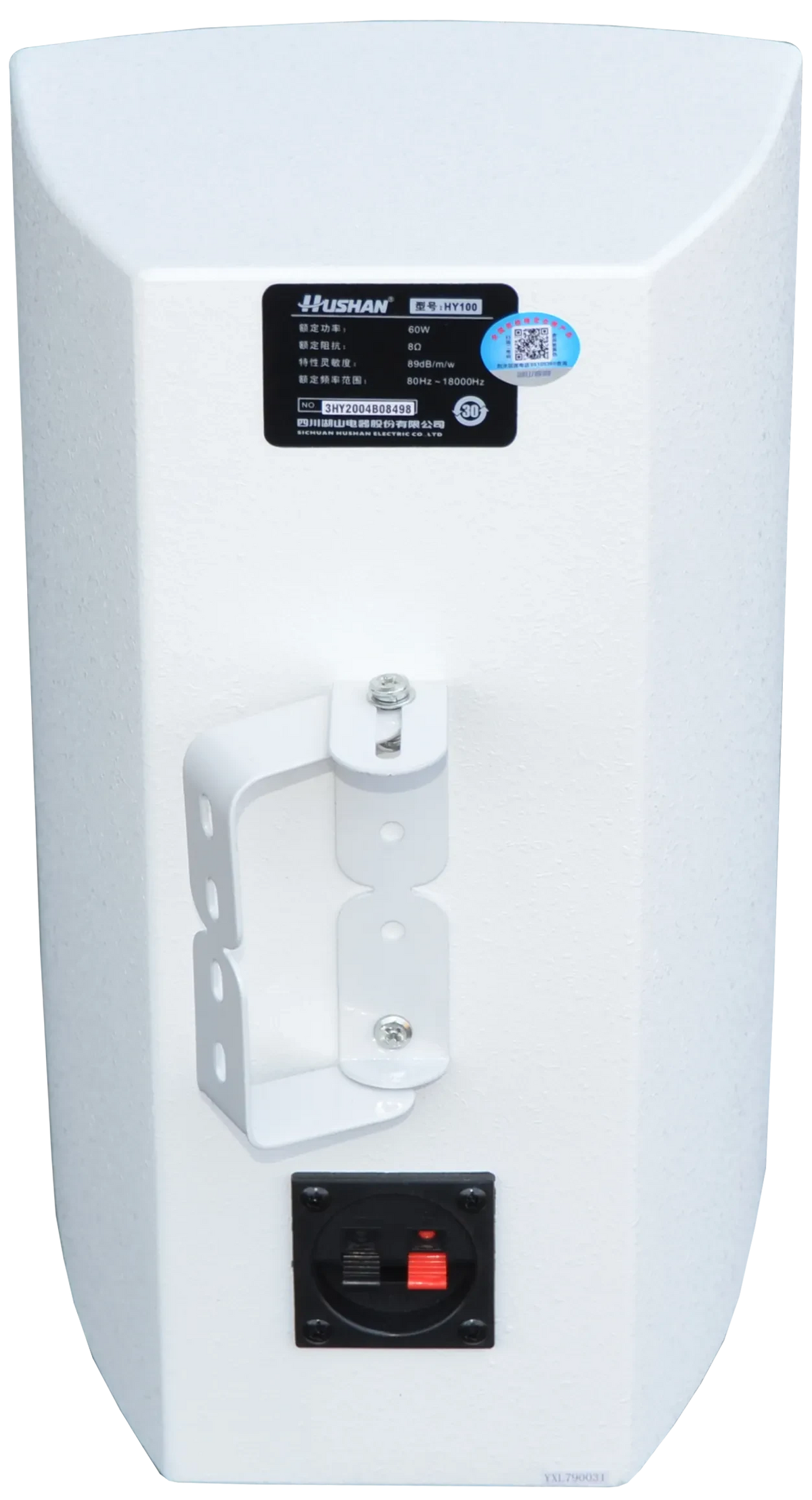

Rear / Installation View
Installation and connection reference
Rear and detail views help integrators understand mounting, connection, and cabinet layout before consultation.
Education Audio Workflow
How It Fits into a Classroom Audio Project
Confirm room use
Define classroom size, teaching style, speech reinforcement needs, and multimedia playback requirements.
Select matching devices
Match microphones, speakers, and amplifiers according to coverage, power, and installation method.
Validate installation
Confirm mounting positions, wiring, pairing, and acoustic feedback control before deployment.
Applications
Recommended Use Cases
Classrooms
Wall-mounted speech and multimedia playback.
Training rooms
Clear voice coverage for instruction and presentations.
Small meeting rooms
Compact full-range reinforcement where a wall speaker is preferred.
