Three-in-one stage fixture
Beam, gobo, color, zoom, frost, and prism effects are combined into one moving-head lighting unit for flexible stage and venue use.
Intelligent Stage Lighting
WL-200SL IoT 3-in-1 Moving Head
Hushan
WL-200SL
¥200.00
Product Advantages
The WL-200SL is an IoT-enabled 3-in-1 moving head for stage, auditorium, and multipurpose venue lighting. It uses a 200 W LED source, supports pan/tilt movement with automatic reset correction, color and gobo effects, frost, prism, 3.5°–29° zoom, DMX512/RDM control, and remote management through compatible IoT platf...
- Three-in-one stage fixture Beam, gobo, color, zoom, frost, and prism effects are combined into one moving-head lighting unit for flexible stage and venue use.
- Precise movement 540° pan and 270° tilt use 16-bit scanning precision with automatic reset correction.
- Rich optical effects The fixture includes an 11-color wheel plus white, 10 gobos plus open, a high-transmittance frost filter, and an 8-facet honeycomb prism.
- IoT-ready control DMX512, RDM, and custom control modes are supported, with third-party IoT platform integration for remote device management.
Secure checkout powered by Shopify
B2B Project Support
Warranty Support
Technical Specifications
| Product Type | IoT-enabled 3-in-1 moving head |
| Input Power | AC 100–240 V, 50/60 Hz |
| Rated Power | 320 W |
| Light Source | 200 W LED |
| LED Rated Life | 20,000 h |
| Pan | 540°, 16-bit precision scanning |
| Tilt | 270°, 16-bit precision scanning |
| Reset Correction | Automatic correction reset function |
| Color Wheel | 11 colors + white, half-color effect, bidirectional rainbow rotation |
| Gobo Wheel | 10 gobos + open, quick bidirectional rainbow effect, magnetic positioning |
| Frost | 1 × high-transmittance frost filter |
| Prism | 1 × 8-facet honeycomb prism |
| Color Temperature | 7800 K |
| Noise | < 40 dB after LED on, with special heat-dissipation structure |
| Zoom Range | 3.5°–29° |
| Display | LCD display |
| Signal I/O | 2 × 3-pin XLR sockets, 2 × 5-pin XLR sockets, 2 × power plugs |
| Control Modes | DMX512, RDM, custom mode |
| IoT Support | Supports connection with compatible third-party IoT platforms for remote computer control |
| Dimensions | 422 × 274 × 455.4 mm, L × W × H |
| Test Standards | GB 7000.1-2015; GB 7000.217-2008 |
Intelligent Stage Lighting
WL-200SL IoT 3-in-1 Moving Head
The WL-200SL is an IoT-enabled 3-in-1 moving head for stage, auditorium, and multipurpose venue lighting. It uses a 200 W LED source, supports pan/tilt movement with automatic reset correction, color and gobo effects, frost, prism, 3.5°–29° zoom, DMX512/RDM control, and remote management through compatible IoT platforms.
Precise movement
540° pan and 270° tilt use 16-bit scanning precision with automatic reset correction.
Rich optical effects
The fixture includes an 11-color wheel plus white, 10 gobos plus open, a high-transmittance frost filter, and an 8-facet honeycomb prism.
IoT-ready control
DMX512, RDM, and custom control modes are supported, with third-party IoT platform integration for remote device management.
200 W
LED Source
3.5°–29°
Zoom
540° / 270°
Pan / Tilt
< 40 dB after LED on
Noise
Three-in-one stage fixture
Beam, gobo, color, zoom, frost, and prism effects are combined into one moving-head lighting unit for flexible stage and venue use.
Precise movement
540° pan and 270° tilt use 16-bit scanning precision with automatic reset correction.
Rich optical effects
The fixture includes an 11-color wheel plus white, 10 gobos plus open, a high-transmittance frost filter, and an 8-facet honeycomb prism.
IoT-ready control
DMX512, RDM, and custom control modes are supported, with third-party IoT platform integration for remote device management.
Application Scene

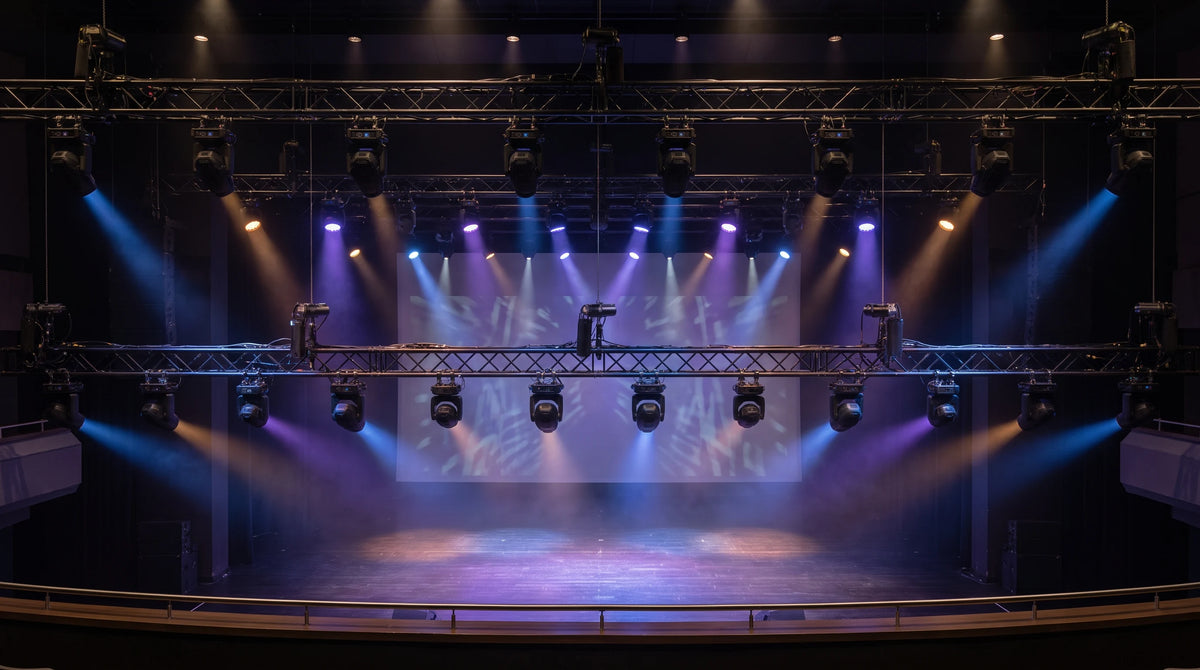

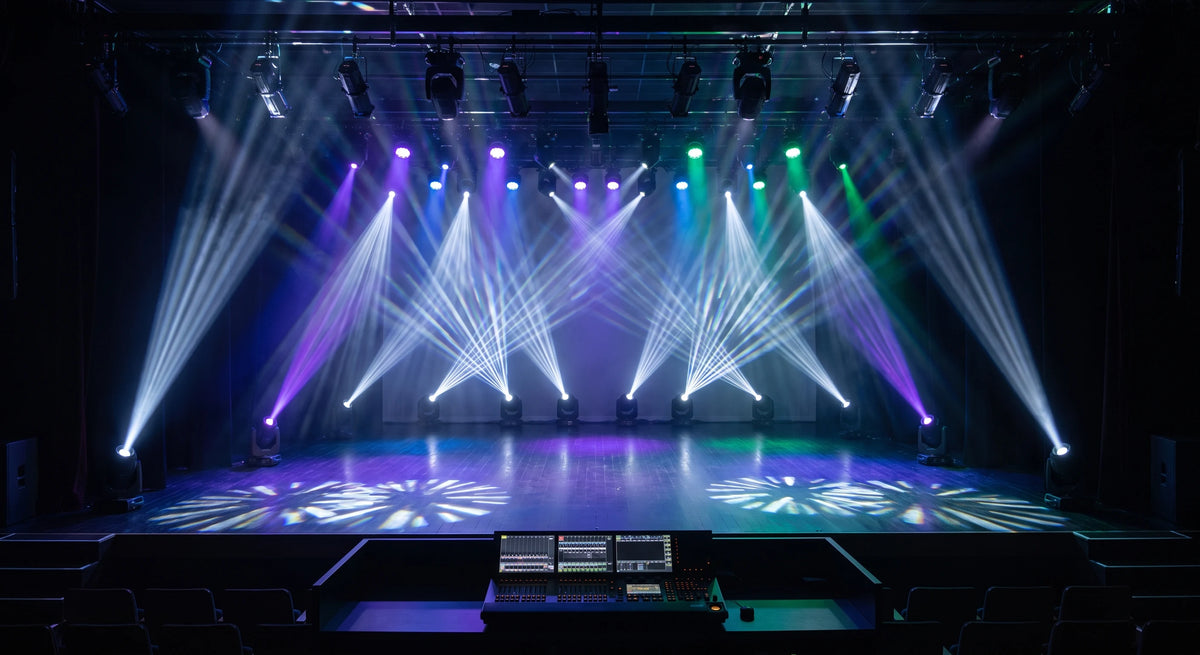

Moving-head lighting effects for auditorium and stage projects
Application illustration showing how WL-200SL IoT 3-in-1 Moving Head can fit into a professional AV deployment. Refer to the verified specifications for exact technical details.
Lighting Project Workflow
How It Fits into a Venue Lighting Project
Define positions
Confirm top-light, side-light, stage pattern, or multipurpose fixture positions.
Plan control
Confirm DMX512, RDM, custom mode, and any IoT platform remote-control requirements.
Commission effects
Validate movement, zoom, color, gobo, prism, frost, and noise requirements on site.
Applications
Recommended Use Cases
Auditoriums and stages
Moving-head effects for top light, side light, and stage pattern positions.
Multipurpose halls
Flexible beam, gobo, and wash-style support for meetings, performances, and events.
Cultural and entertainment venues
Remote-manageable lighting fixture for project-grade stage systems.
