Color and white-light integration
480 × 0.5 W white LED beads and 24 × 10 W RGBW LEDs support both full-color scene washes and high-CRI white meeting light.
Conference Stage Lighting
HLP9024 Multifunction Silent Conference Wash Light
Hushan
HLP9024
¥0.00
Product Advantages
The HLP9024 is a multifunction silent wash light designed for conference halls, auditoriums, studios, and multipurpose venues. It combines RGBW color wash and high-CRI white light in one fixture, supports recessed installation, offers DMX512, master-slave, and auto-run control modes, and includes RDM functions for r...
- Color and white-light integration 480 × 0.5 W white LED beads and 24 × 10 W RGBW LEDs support both full-color scene washes and high-CRI white meeting light.
- Designed for quiet venues The fixture is specified at ≤25 dB with silent fan cooling, making it suitable for meeting rooms, studios, and speech-focused venues.
- Professional control DMX512, master-slave, and auto-run modes are supported, with 11-channel control for system integration.
- RDM-ready maintenance Bidirectional RDM enables remote addressing, while real-time temperature display helps commissioning and maintenance teams monitor fixtures.
Secure checkout powered by Shopify
B2B Project Support
Warranty Support
Technical Specifications
| Product Type | Multifunction silent conference wash light |
| Input Power | AC 100–240 V, 50/60 Hz |
| Rated Power | 300 W |
| Light Source | 480 × 0.5 W white LED beads + 24 × 10 W RGBW full-color LED beads |
| LED Rated Life | 50,000 h |
| Color | RGBW infinite color mixing, adjustable-speed rainbow effect, and white-light effect |
| Beam Angle | Full-color 25°; optional 45° |
| White Beam Angle | 120° |
| Color Rendering Index | Ra≥96 |
| Dimming | 0–100% linear dimming; 4 dimming curves; 500 Hz–25,000 Hz dimming frequency |
| Color Temperature | 3200–5600 K adjustable |
| Housing | High-quality die-cast aluminum |
| User Interface | 2.8-inch LCD touch screen |
| Control Modes | DMX512, master-slave mode, auto-run mode |
| Channels | 11 CH |
| Operating Environment | -15°C to 40°C |
| Operating Noise | ≤25 dB |
| Ingress Protection | IP20 |
| Cooling | Silent fan |
| RDM Functions | Bidirectional RDM, remote addressing, real-time temperature display |
| Installation | Supports recessed installation |
| Dimensions | L547 × W354 × H110 mm |
| Net Weight | 10 kg |
| Test Standards | GB 7000.1-2015; GB 7000.217-2008 |
| Source Note | Local product list notes a new standard test report was expected after late April. |
Conference Stage Lighting
HLP9024 Multifunction Silent Conference Wash Light
The HLP9024 is a multifunction silent wash light designed for conference halls, auditoriums, studios, and multipurpose venues. It combines RGBW color wash and high-CRI white light in one fixture, supports recessed installation, offers DMX512, master-slave, and auto-run control modes, and includes RDM functions for remote addressing and real-time temperature display.
Designed for quiet venues
The fixture is specified at ≤25 dB with silent fan cooling, making it suitable for meeting rooms, studios, and speech-focused venues.
Professional control
DMX512, master-slave, and auto-run modes are supported, with 11-channel control for system integration.
RDM-ready maintenance
Bidirectional RDM enables remote addressing, while real-time temperature display helps commissioning and maintenance teams monitor fixtures.
300 W
Rated Power
Ra≥96
Color Rendering
≤25 dB
Noise
DMX512 / RDM
Control
Color and white-light integration
480 × 0.5 W white LED beads and 24 × 10 W RGBW LEDs support both full-color scene washes and high-CRI white meeting light.
Designed for quiet venues
The fixture is specified at ≤25 dB with silent fan cooling, making it suitable for meeting rooms, studios, and speech-focused venues.
Professional control
DMX512, master-slave, and auto-run modes are supported, with 11-channel control for system integration.
RDM-ready maintenance
Bidirectional RDM enables remote addressing, while real-time temperature display helps commissioning and maintenance teams monitor fixtures.
Application Scene

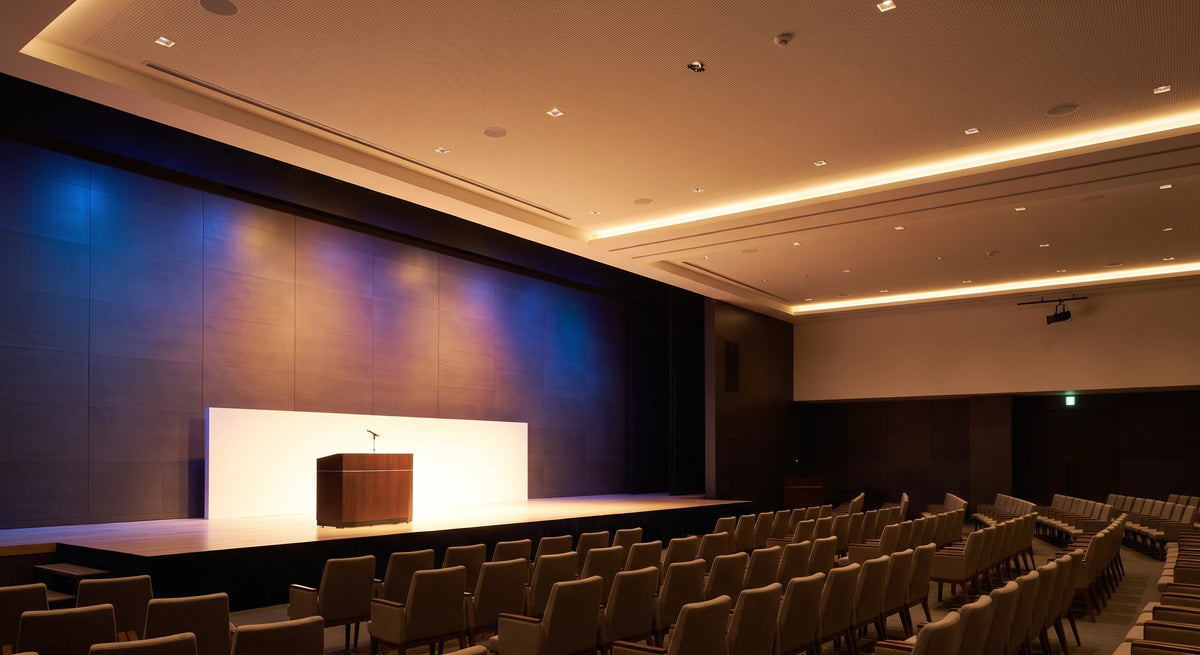

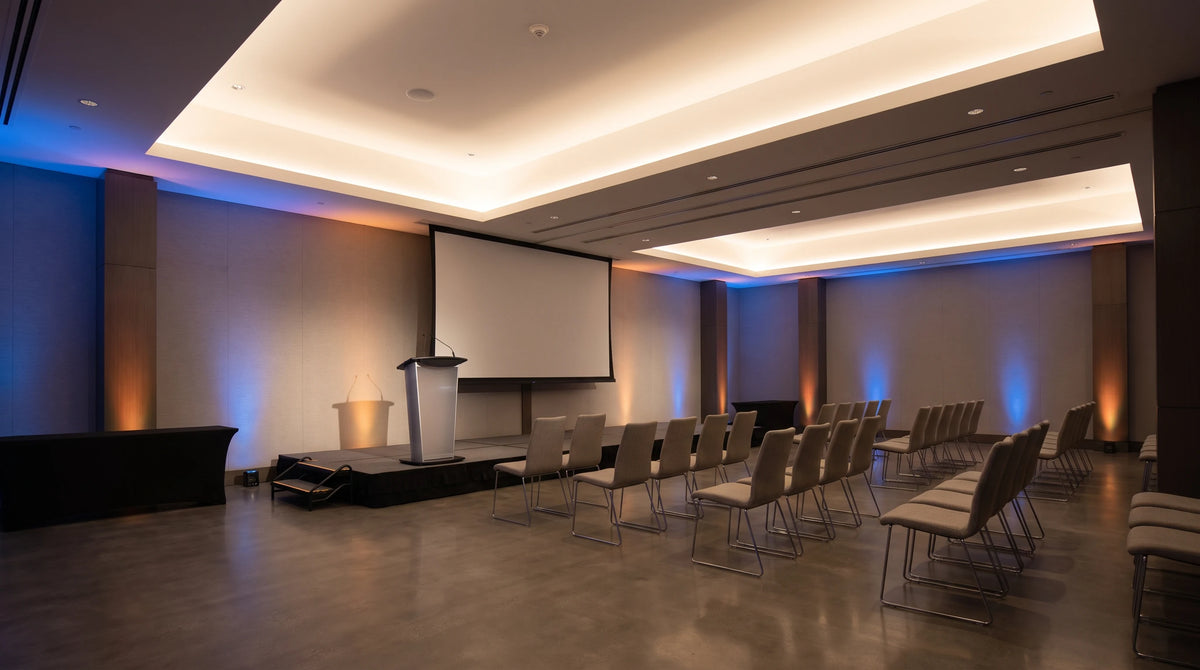

Quiet wash-light scenes for conference and presentation venues
Application illustration showing how HLP9024 Multifunction Silent Conference Wash Light can fit into a professional AV deployment. Refer to the verified specifications for exact technical details.
Lighting Project Workflow
How It Fits into a Venue Lighting Project
Plan wash coverage
Confirm color-wash angle, white-light coverage, ceiling position, and recessed installation requirements.
Configure control
Map DMX512 channels, master-slave or auto-run modes, and any RDM remote-addressing workflow.
Commission quietly
Validate color temperature, high-CRI white light, dimming curve, fan noise, and temperature monitoring on site.
Applications
Recommended Use Cases
Conference halls
Quiet RGBW and white-light fixture for meetings, presentations, and multipurpose meeting-room scenes.
Auditoriums and studios
High-CRI white output and color wash support for speech, recording, and event lighting.
Embedded ceiling installations
The product information notes recessed installation support for cleaner architectural integration.
