Durable outdoor structure
Aluminum enclosure and stainless steel protective grille support long-term outdoor public-address installation.
Public Address Speaker
GB-530 Outdoor Column Speaker
Hushan
GB-530
¥0.00
The GB-530 is a 30 W outdoor column speaker for 100 V public-address systems. It combines an aluminum body, stainless steel protective grille, flexible installation, and two-way speaker design for outdoor announcement coverage.
Contact for Availability
Request a Quote
Product documents available on request
Support scope confirmed for each order
Technical Specifications
| Product Type | Outdoor column speaker |
| Input Voltage | 100 V |
| Rated Power | 30 W |
| Frequency Response | 130 Hz – 18 kHz ± 10% |
| Sensitivity | 89 dB ± 3 dB |
| Maximum SPL | 104 dB ± 1 dB |
| Speaker Units | LF: 5 in × 2; HF: 1 in tweeter |
| Enclosure | Aluminum material |
| Grille | Stainless steel mesh |
| Dimensions | 413 × 155 × 134 mm, H × W × D |
Public Address System
GB-530 Outdoor Column Speaker
The GB-530 is a 30 W outdoor column speaker for 100 V public-address systems. It combines an aluminum body, stainless steel protective grille, flexible installation, and two-way speaker design for outdoor announcement coverage.
100 V PA integration
The speaker is designed for constant-voltage public-address systems where distributed coverage is required.
Two-way speaker design
LF and HF units provide balanced voice and practical music reproduction for paging and background audio.
Flexible installation
The slim column format is suitable for wall or structural mounting in outdoor corridors and public areas.
30 W
Rated Power
100 V
Input
104 dB ± 1 dB
Max SPL
130 Hz – 18 kHz
Response
Durable outdoor structure
Aluminum enclosure and stainless steel protective grille support long-term outdoor public-address installation.
100 V PA integration
The speaker is designed for constant-voltage public-address systems where distributed coverage is required.
Two-way speaker design
LF and HF units provide balanced voice and practical music reproduction for paging and background audio.
Flexible installation
The slim column format is suitable for wall or structural mounting in outdoor corridors and public areas.

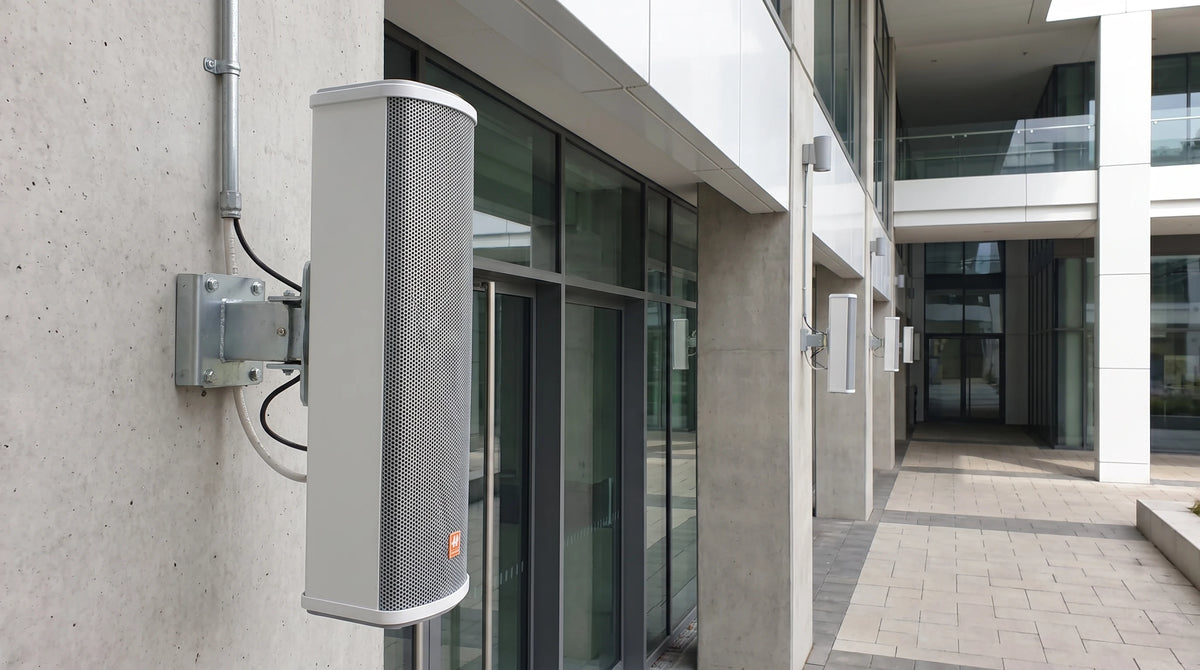

Application Fit
Engineered for daily paging and project-grade deployment
Use this model as part of a HUSHAN public-address design for announcements, background audio, and emergency broadcast workflows. Final system configuration should be confirmed by project requirements.

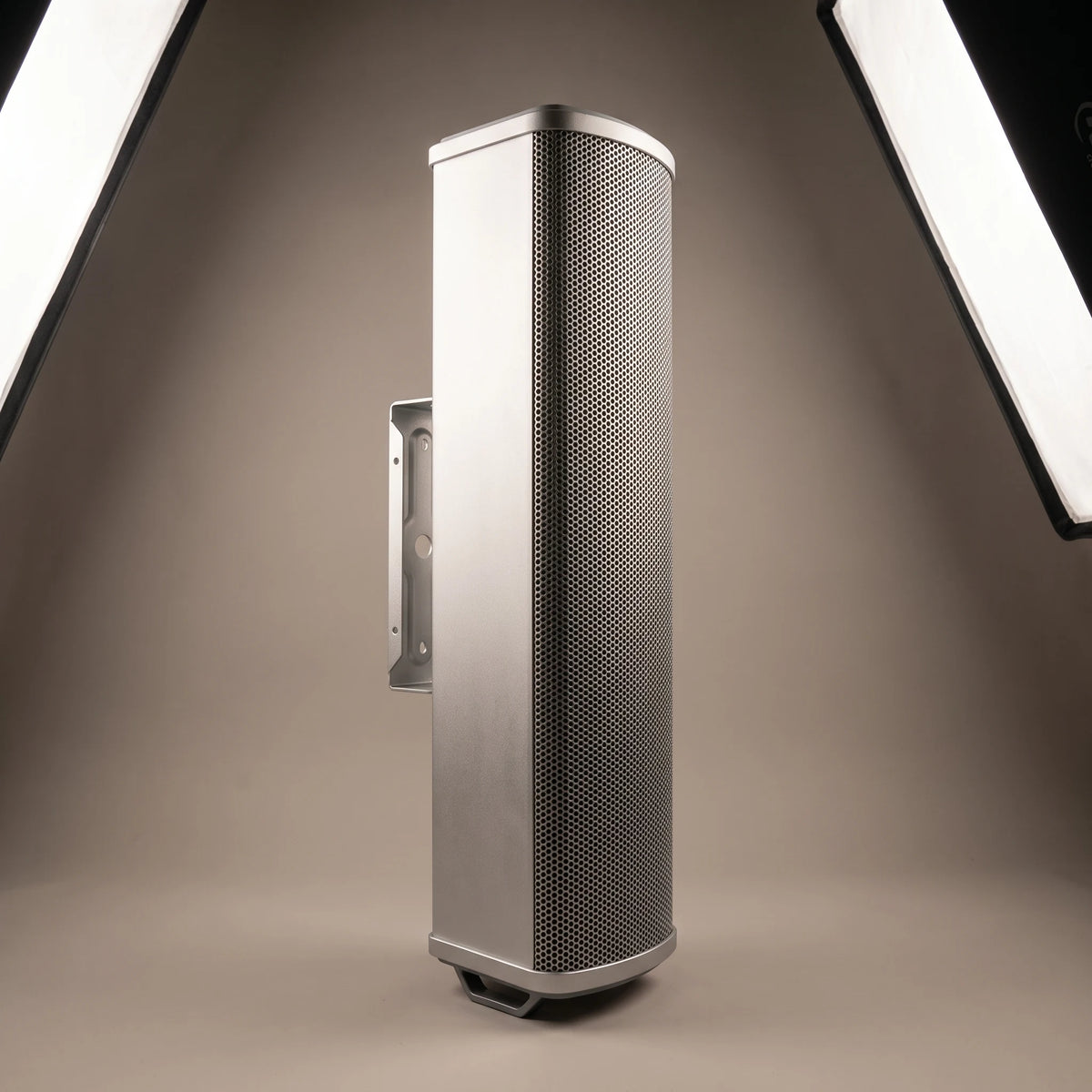

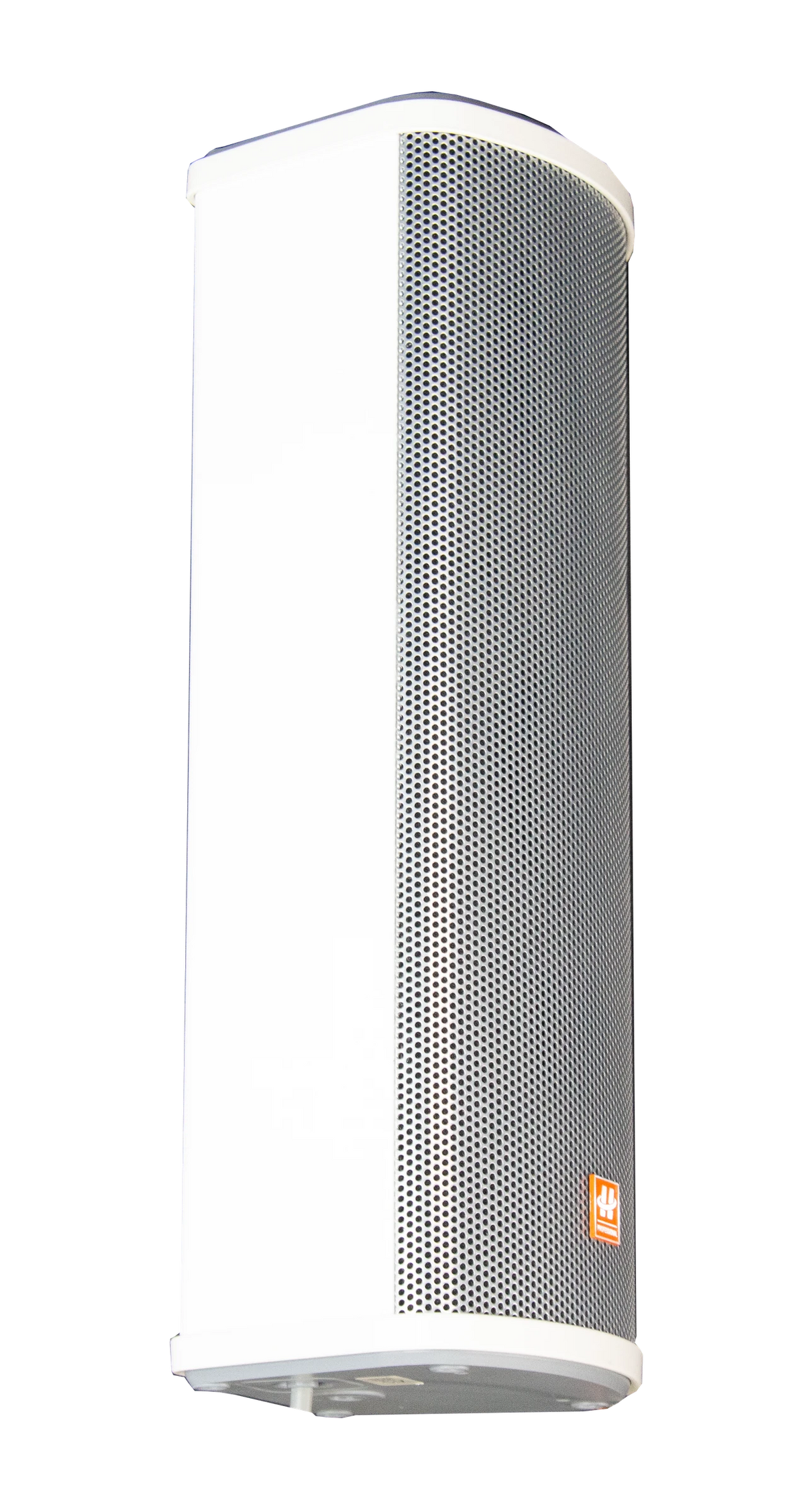

Real Product Reference
Product appearance matched to source material
The gallery starts with the real product image extracted from HUSHAN source documentation. AI-assisted visuals are used only to improve presentation and show application context.

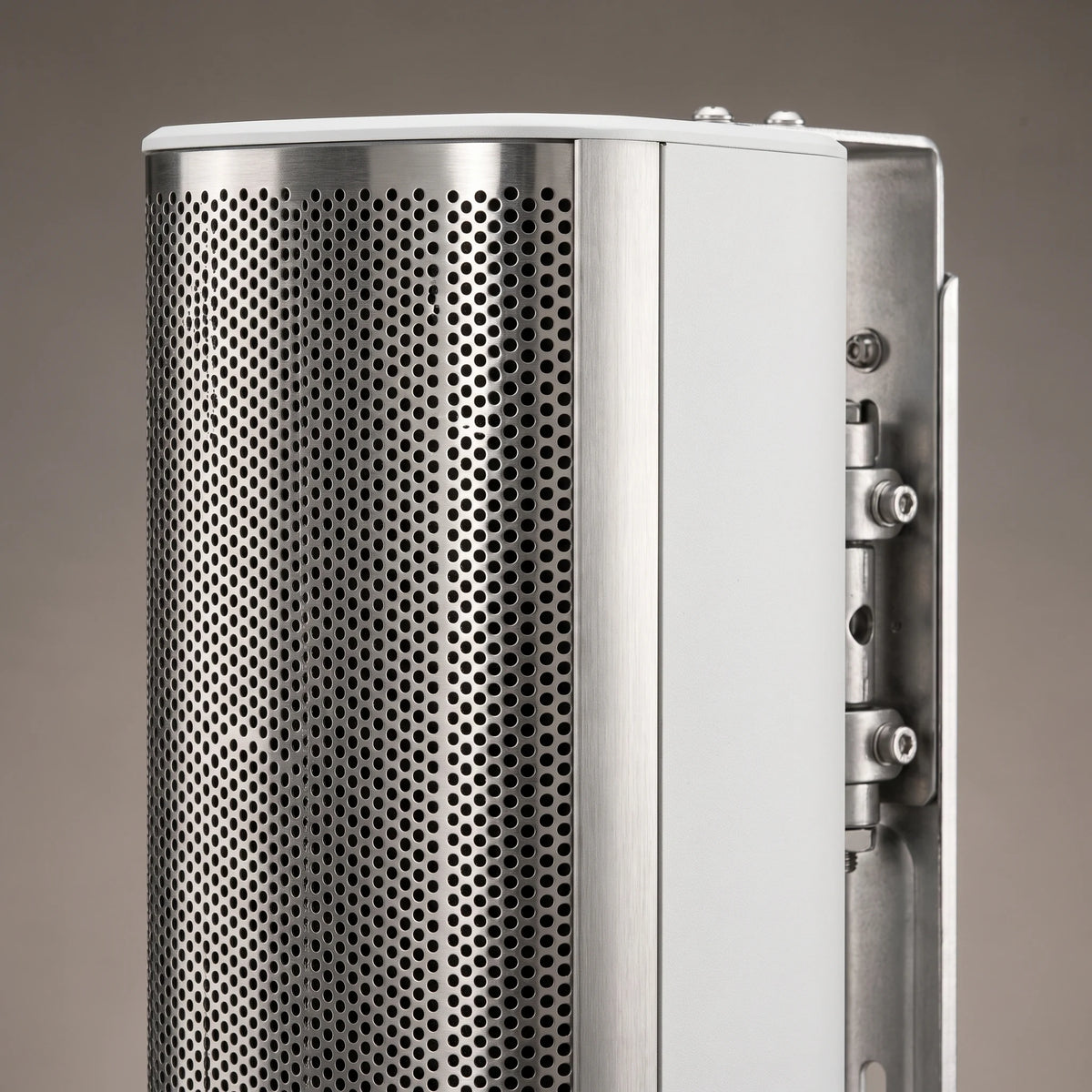

Detail View
Installation-ready hardware presentation
The detail visual highlights the product form factor, finish, and installation logic while the specifications table below remains the source of exact technical values.
Project Workflow
How It Fits into a Public-Address Project
Define zones
Confirm indoor or outdoor coverage areas, announcement priority, and whether the site needs networked or 100 V distributed audio.
Match endpoints
Select hosts, speakers, and system endpoints based on product type, power, input method, and installation environment.
Confirm engineering details
Validate wiring, mounting, network topology, and operating requirements before quotation or deployment.
Applications
Recommended Use Cases
Outdoor corridors
Slim 100 V column speakers for distributed announcement coverage.
Campus public-address areas
Paging and background audio for school and university exterior zones.
Commercial building exteriors
Durable wall-mounted audio coverage around entrances and outdoor walkways.
Public facility announcement zones
Voice paging and routine messaging in civic and transport-related areas.
Specification source
Technical values are transcribed from the local HUSHAN export product list. Prices are intentionally not modified in this update.
