Chairman Terminal
Chairman control with display feedback and a long single gooseneck microphone.
Smart MIC System

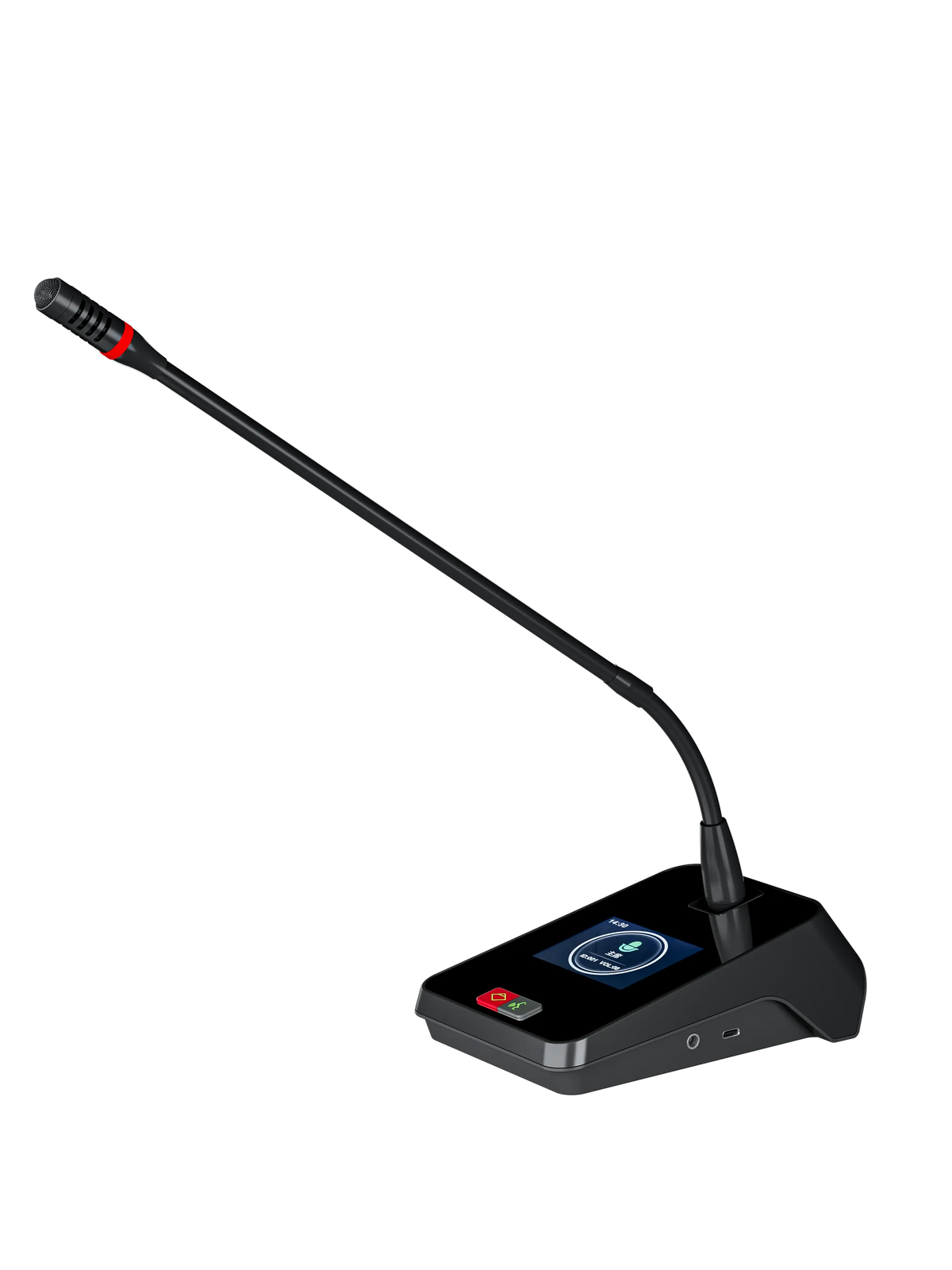

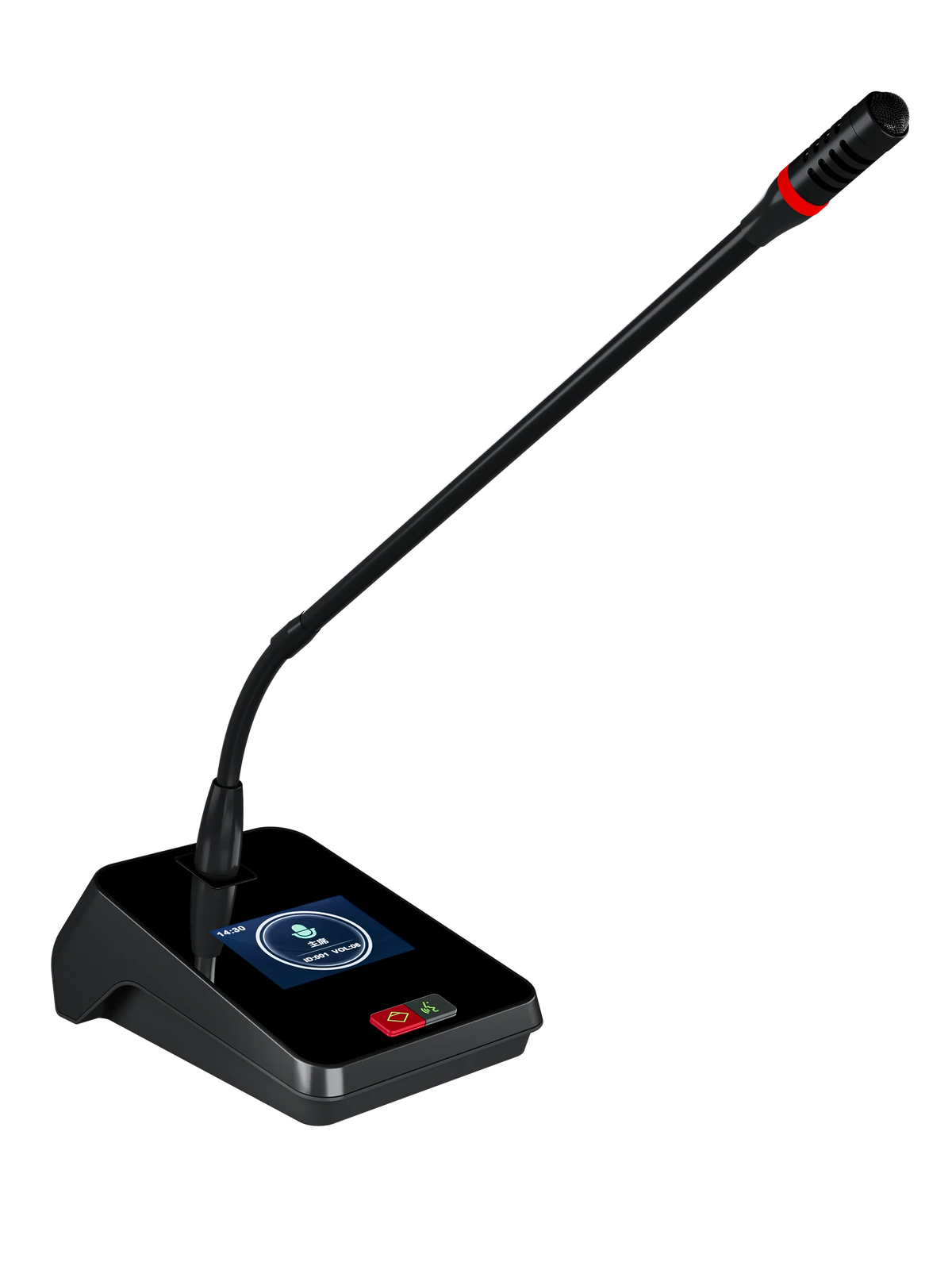

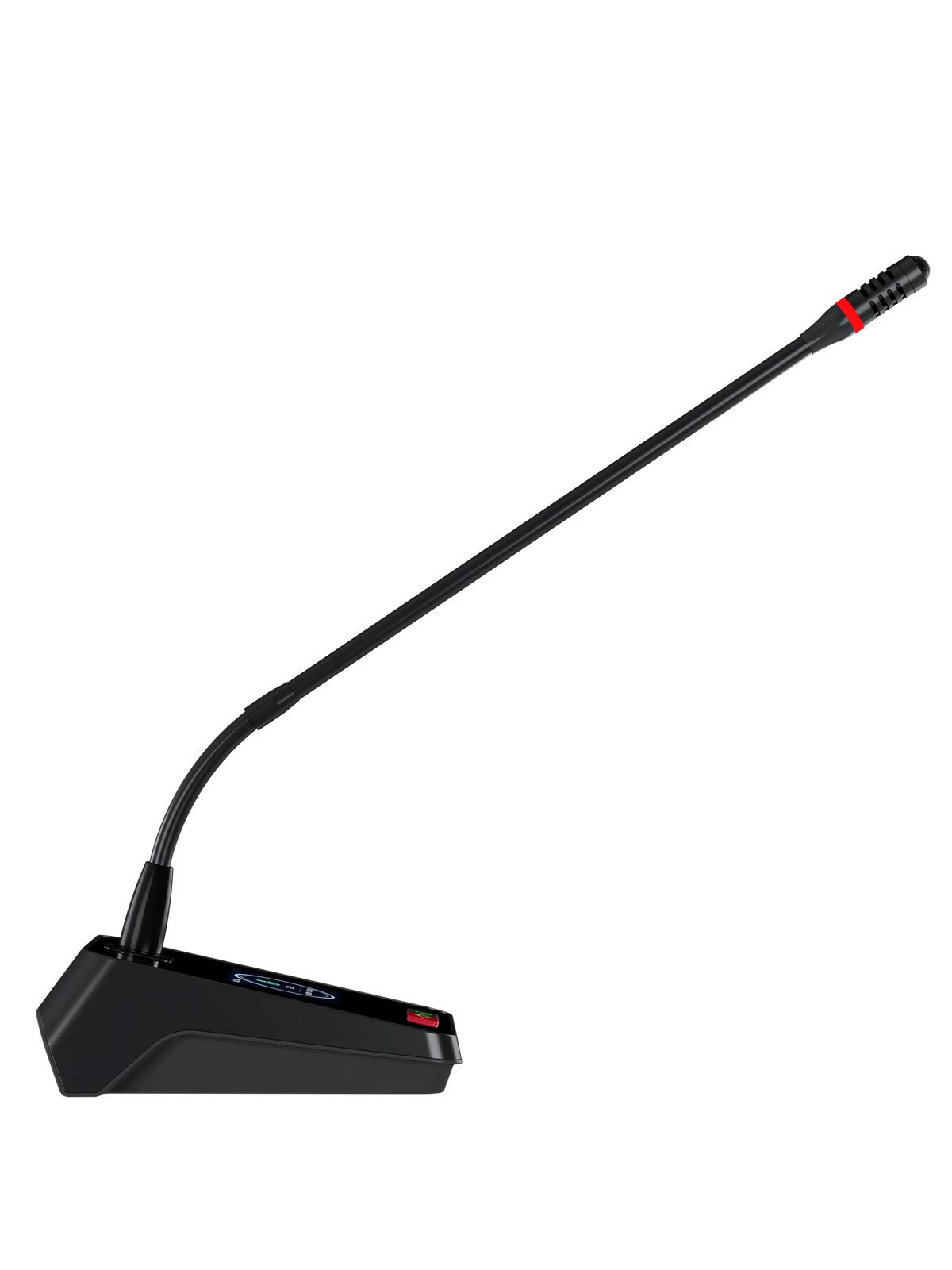

DS-621SC Smart Chairman Unit (Single Microphone)
HUSHAN
DS-621SC
¥899.00
DS-621SC is a smart chairman conference terminal with a single 400 mm gooseneck microphone, 2.8-inch IPS display, RJ45 and 8P-DIN connectivity, request/timer operation, identity assignment, and chairman control modes.
Product documents available on request
Support scope confirmed for each order
Technical Specifications
| Transducer | 9.7 mm condenser |
| Polar Pattern | Supercardioid |
| Frequency Response | 60 Hz - 20 kHz |
| Sensitivity | -26 dB ?1 dB |
| SNR | ?70 dBA |
| Connections | RJ45 x 1, 8P-DIN x 1 |
| Supply Voltage | System DC24V |
| Speaking Distance | 15 cm - 80 cm |
| Base Size | 108 x 55 x 160 mm |
| Gooseneck Length | 400 mm |
Smart MIC Xingyu Series
DS-621SC Smart Chairman Unit (Single Microphone)
DS-621SC is a smart chairman conference terminal with a single 400 mm gooseneck microphone, 2.8-inch IPS display, RJ45 and 8P-DIN connectivity, request/timer operation, identity assignment, and chairman control modes.
Smart MIC conference ecosystem
Designed to work with HUSHAN master controllers, wired or wireless terminals, expansion hubs, and conference-room management workflows.
Built from HUSHAN product data
The page content is based on the provided product information file and avoids unsupported certification or performance claims.
2.8 in
IPS display
400 mm
Gooseneck
8
Meeting modes
15-80 cm
Reference speaking distance
Chairman authority
Chairman role supports priority behavior, including closing active delegate microphones when required by the meeting mode.

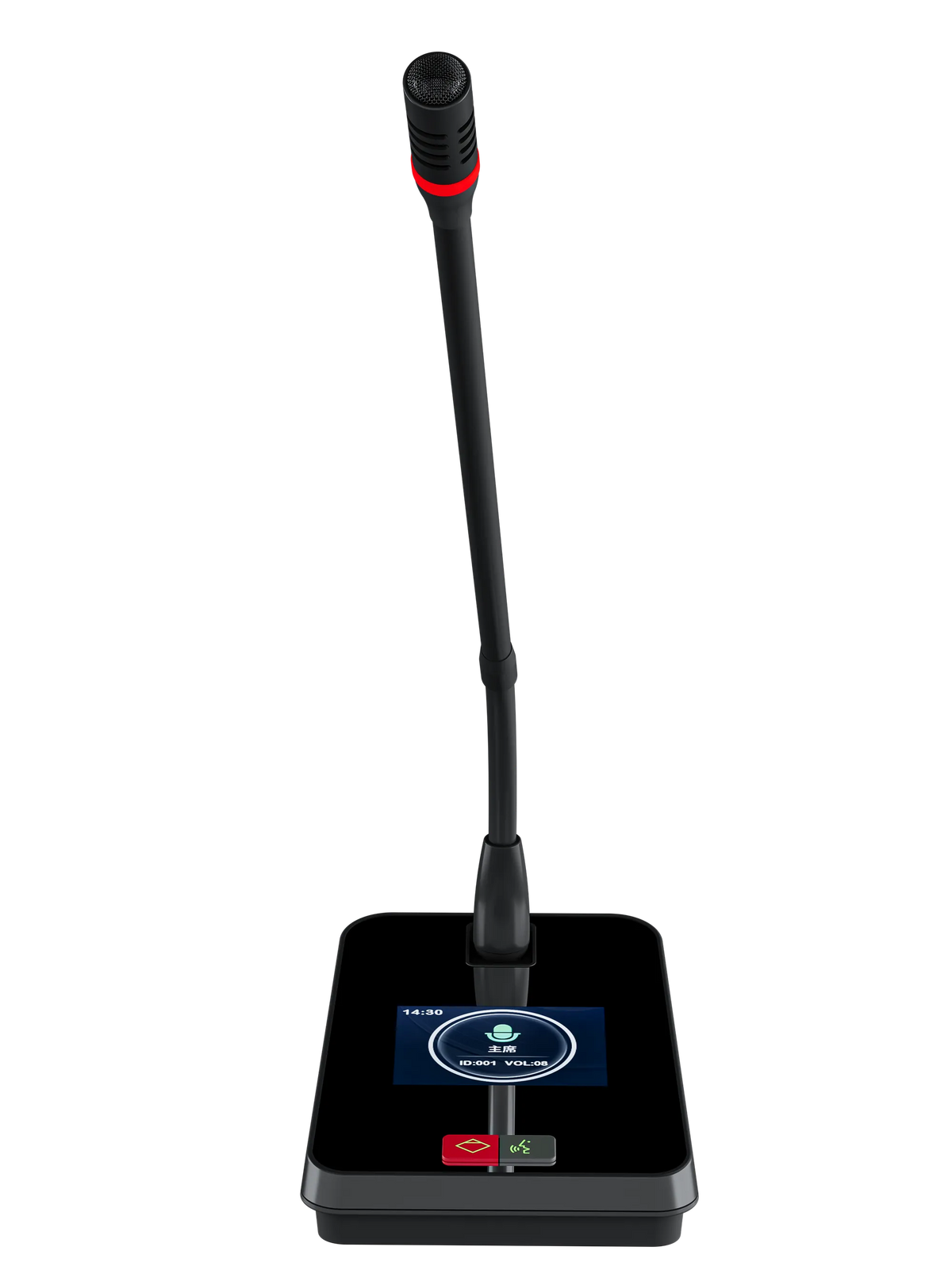

2.8-inch status display
The IPS display shows terminal status, role, ID, volume, time, and other meeting information.
Eight meeting modes
Supports free, rotation, limit, request, timer, voice-activated, PTT, and VIP speaking workflows.
Flexible identity setting
Any terminal can be configured as chairman, delegate, or VIP according to room layout and meeting rules.
Dual connection options

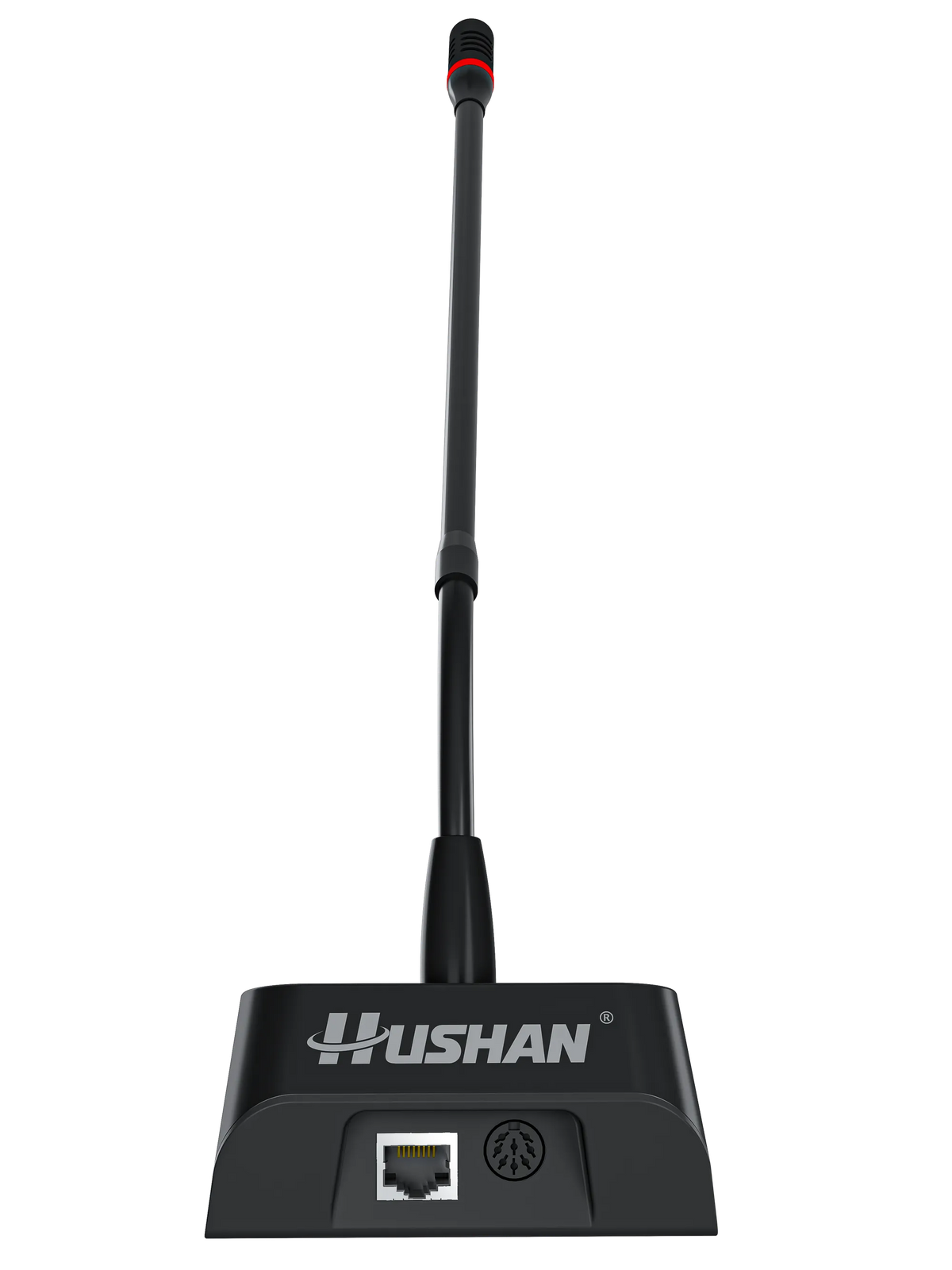

RJ45 and 8P-DIN interfaces support shielded network cable or 8-core hand-in-hand system wiring.
Hot-plug and ID addressing
Automatic ID addressing helps avoid conflicts, while hot-plug support keeps other units working during replacement.
Product Application
Chairman control with display feedback and a long single gooseneck microphone.
The scene image is generated from the real source product photo and used only in the lower detail page to explain application context.
System Context
Designed as Part of a Managed Conference System
Smart MIC products are used together as a system: the controller manages roles and modes, terminals capture speech, receivers add wireless access, and expansion hubs scale wired seat counts.
Installation Use
Clear Operation for Formal Meeting Rooms
The system supports structured meetings in council chambers, corporate boardrooms, command rooms, education spaces, and other rooms where speaking order and audio reliability matter.
Project Workflow
How It Fits Into a Smart MIC Project
Connect the system core
Connect the master controller, receiver, expansion hub, and microphone terminals according to the required wired or wireless room layout.
Assign roles and meeting modes
Set terminal IDs, chairman/delegate/VIP roles, speaking limits, request queues, timers, and operating modes from the controller or management software.
Operate the meeting
Participants speak through managed terminals while the system handles microphone state, queue behavior, camera tracking support, and stable speech transmission.
Maintain and expand
Use hot-plug support, network expansion, and monitoring workflows to keep the system reliable as the room grows.
Applications
Where It Fits
Government and council chambers
Role-based chairman/delegate workflows, camera-tracking support, and structured speaking modes fit formal meeting rooms.
Corporate conference centers
Managed microphone operation and clean terminal layouts help executive rooms, boardrooms, and hybrid meeting spaces stay orderly.
Large conference systems
Expansion hubs, mixed wiring options, and hot-plug support help integrators scale the system across more seats and more rooms.
Transducer
9.7 mm condenser
Polar Pattern
Supercardioid
Frequency Response
60 Hz - 20 kHz
Sensitivity
-26 dB ?1 dB
