Dual-Mic Chairman Terminal
Dual microphone chairman control for formal meeting rooms.
Smart MIC System
DS-622SC Smart Chairman Unit (Dual Microphone)
HUSHAN
DS-622SC
¥999.00
DS-622SC is a smart chairman conference terminal with dual 225 mm microphones, 2.8-inch IPS display, chairman priority control, RJ45 and 8P-DIN connectivity, and eight meeting-mode workflows.
Product documents available on request
Support scope confirmed for each order
Technical Specifications
| Transducer | 2 x 14 mm condenser |
| Polar Pattern | Supercardioid |
| Frequency Response | 60 Hz - 20 kHz |
| Sensitivity | -26 dB ?1 dB |
| SNR | ?70 dBA |
| Connections | RJ45 x 1, 8P-DIN x 1 |
| Supply Voltage | System DC24V |
| Speaking Distance | 15 cm - 80 cm |
| Base Size | 108 x 55 x 160 mm |
| Gooseneck Length | 2 x 225 mm |
Smart MIC Xingyu Series
DS-622SC Smart Chairman Unit (Dual Microphone)
DS-622SC is a smart chairman conference terminal with dual 225 mm microphones, 2.8-inch IPS display, chairman priority control, RJ45 and 8P-DIN connectivity, and eight meeting-mode workflows.
Smart MIC conference ecosystem
Designed to work with HUSHAN master controllers, wired or wireless terminals, expansion hubs, and conference-room management workflows.
Built from HUSHAN product data
The page content is based on the provided product information file and avoids unsupported certification or performance claims.
2 x 14 mm
Condenser capsules
2 x 225 mm
Microphone stems
8
Meeting modes
15-80 cm
Speaking distance
Dual microphone pickup
Two 14 mm condenser microphones provide chairman-position coverage with compact 225 mm microphone stems.
Chairman priority modes
Chairman exclusive and chairman normal modes support different ways of managing active delegate units.
2.8-inch display
The IPS display presents terminal state, role, ID, volume, time, and meeting information to the operator.
Eight meeting modes
Free, rotation, limit, request, timer, voice-activated, PTT, and VIP modes are supported by the system.

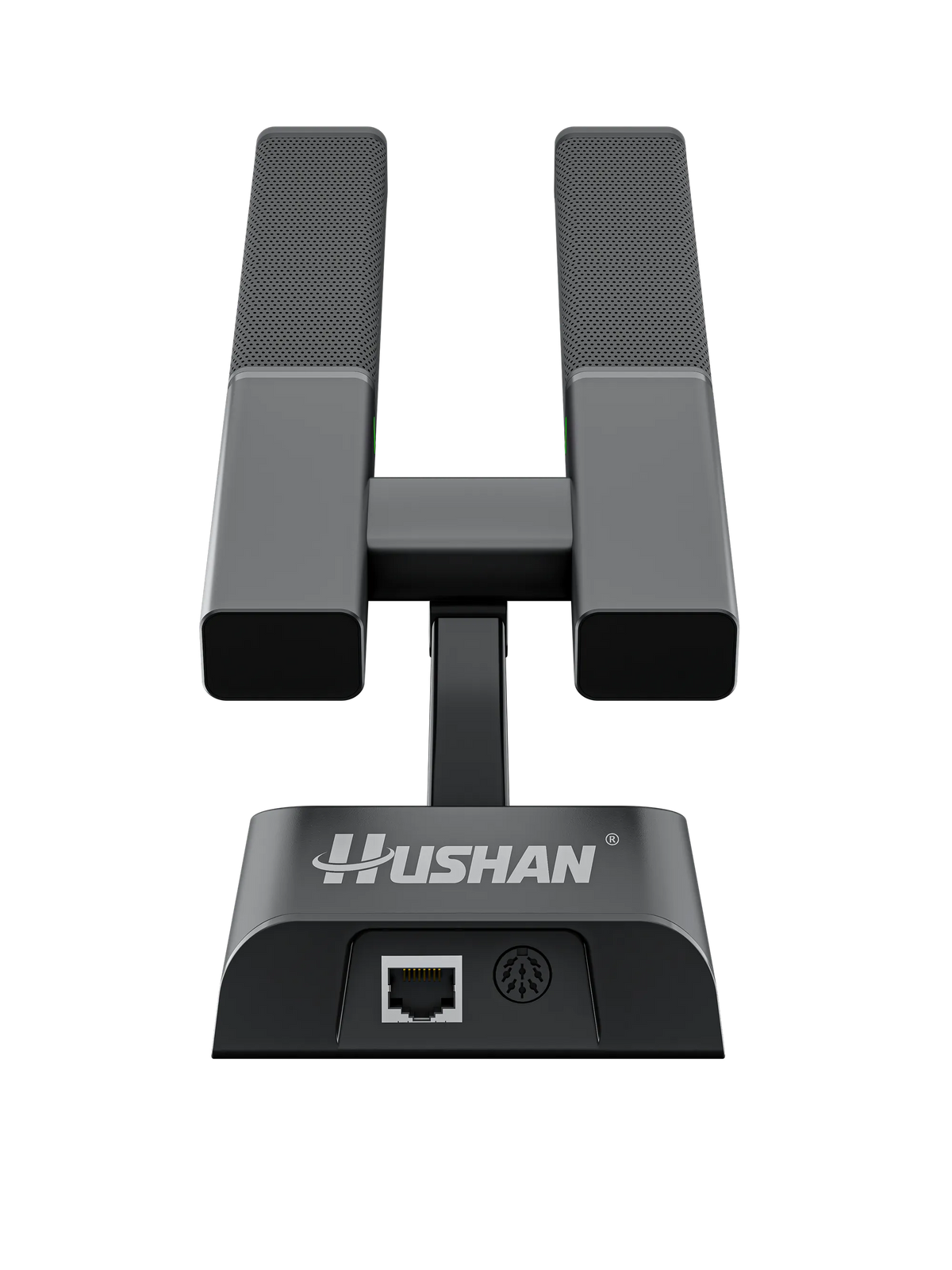

RJ45 and 8P-DIN connections
The terminal supports network-cable and 8-core hand-in-hand wiring for flexible conference table layouts.
Hot-plug reliability
The system supports hot replacement without stopping other terminals in the meeting system.
Product Application
Dual microphone chairman control for formal meeting rooms.
The scene image is generated from the real source product photo and used only in the lower detail page to explain application context.
System Context
Designed as Part of a Managed Conference System
Smart MIC products are used together as a system: the controller manages roles and modes, terminals capture speech, receivers add wireless access, and expansion hubs scale wired seat counts.
Installation Use
Clear Operation for Formal Meeting Rooms
The system supports structured meetings in council chambers, corporate boardrooms, command rooms, education spaces, and other rooms where speaking order and audio reliability matter.
Project Workflow
How It Fits Into a Smart MIC Project
Connect the system core
Connect the master controller, receiver, expansion hub, and microphone terminals according to the required wired or wireless room layout.
Assign roles and meeting modes
Set terminal IDs, chairman/delegate/VIP roles, speaking limits, request queues, timers, and operating modes from the controller or management software.
Operate the meeting
Participants speak through managed terminals while the system handles microphone state, queue behavior, camera tracking support, and stable speech transmission.
Maintain and expand
Use hot-plug support, network expansion, and monitoring workflows to keep the system reliable as the room grows.
Applications
Where It Fits
Government and council chambers
Role-based chairman/delegate workflows, camera-tracking support, and structured speaking modes fit formal meeting rooms.
Corporate conference centers
Managed microphone operation and clean terminal layouts help executive rooms, boardrooms, and hybrid meeting spaces stay orderly.
Large conference systems
Expansion hubs, mixed wiring options, and hot-plug support help integrators scale the system across more seats and more rooms.
Transducer
2 x 14 mm condenser
Polar Pattern
Supercardioid
Frequency Response
60 Hz - 20 kHz
Sensitivity
-26 dB ?1 dB
