Delegate Terminal
A compact 14 mm delegate terminal for managed conference speech.
Smart MIC System

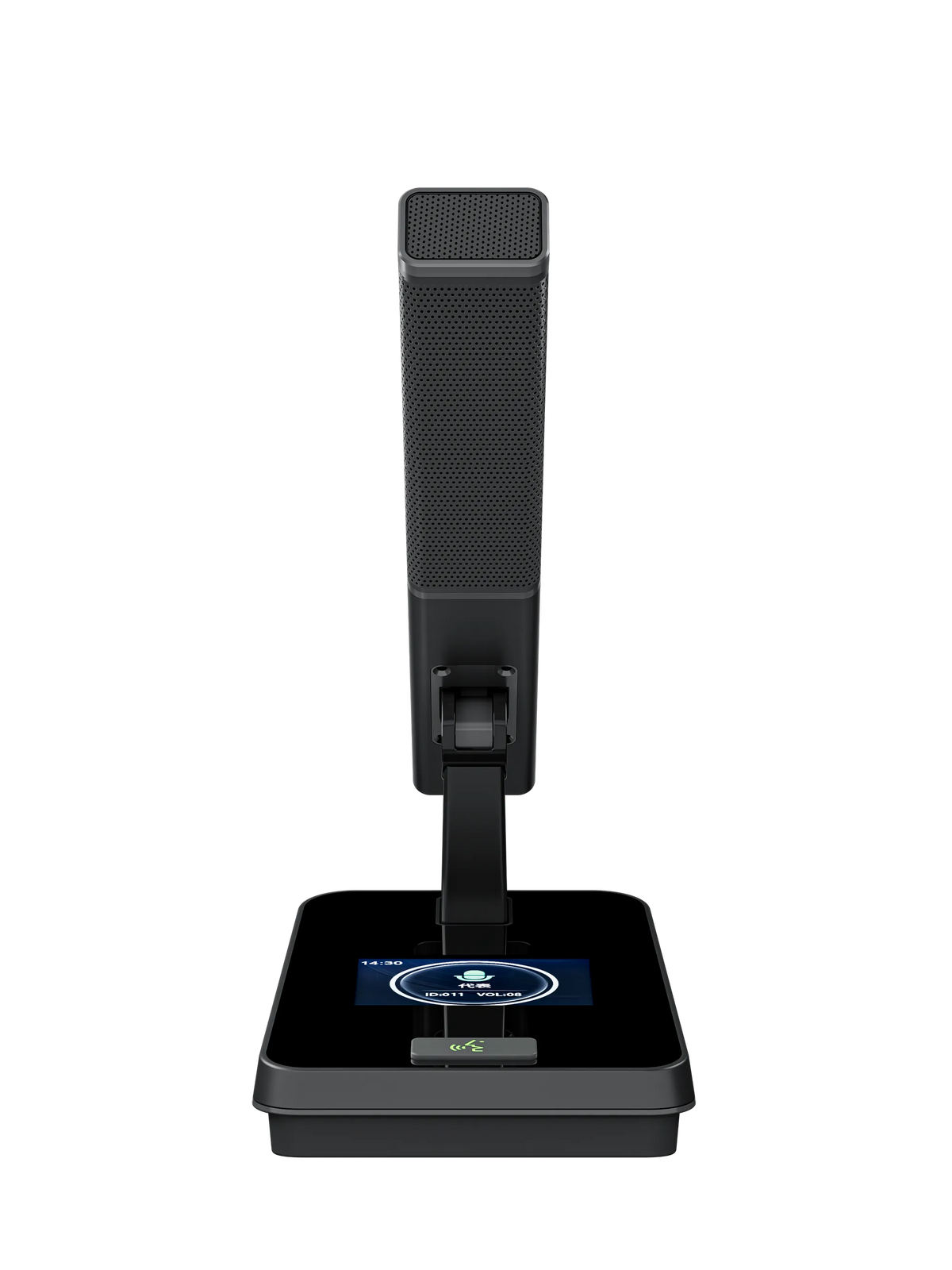

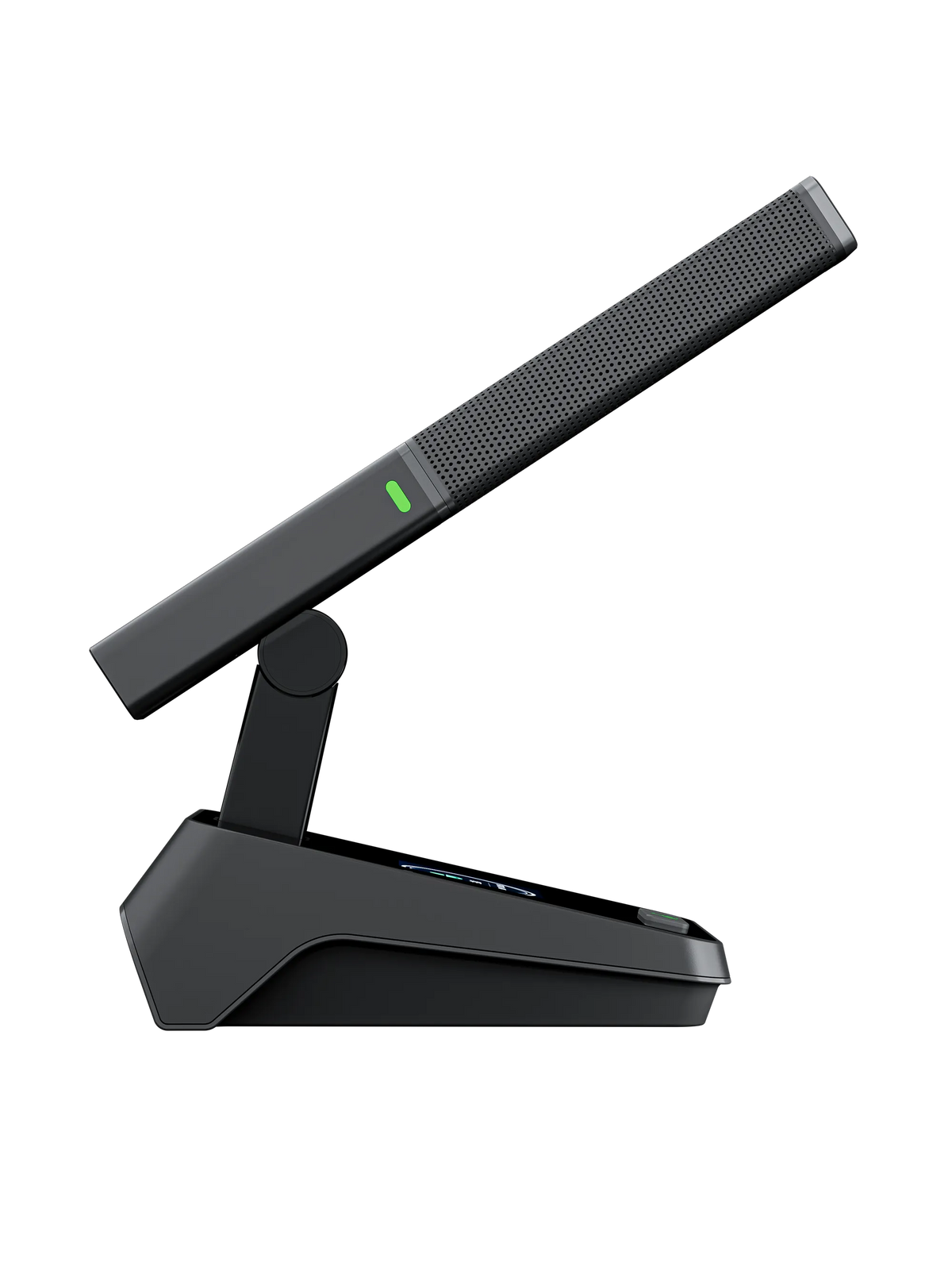

DS-622SD Smart Delegate Unit (14 mm Microphone)
HUSHAN
DS-622SD
¥899.00
DS-622SD is a smart delegate conference terminal with a 14 mm condenser microphone, 2.8-inch IPS display, RJ45 and 8P-DIN connectivity, timer/request workflows, and digital anti-interference transmission.
Product documents available on request
Support scope confirmed for each order
Technical Specifications
| Transducer | 14 mm condenser |
| Polar Pattern | Supercardioid |
| Frequency Response | 60 Hz - 20 kHz |
| Sensitivity | -26 dB ?1 dB |
| SNR | ?70 dBA |
| Connections | RJ45 x 1, 8P-DIN x 1 |
| Supply Voltage | System DC24V |
| Speaking Distance | 15 cm - 80 cm |
| Base Size | 108 x 55 x 160 mm |
| Gooseneck Length | 225 mm |
Smart MIC Xingyu Series
DS-622SD Smart Delegate Unit (14 mm Microphone)
DS-622SD is a smart delegate conference terminal with a 14 mm condenser microphone, 2.8-inch IPS display, RJ45 and 8P-DIN connectivity, timer/request workflows, and digital anti-interference transmission.
Smart MIC conference ecosystem
Designed to work with HUSHAN master controllers, wired or wireless terminals, expansion hubs, and conference-room management workflows.
Built from HUSHAN product data
The page content is based on the provided product information file and avoids unsupported certification or performance claims.
14 mm
Condenser capsule
225 mm
Gooseneck
8
Meeting modes
?70 dBA
SNR
14 mm voice pickup
The source specification lists a 14 mm condenser capsule with supercardioid directivity for conference speech pickup.

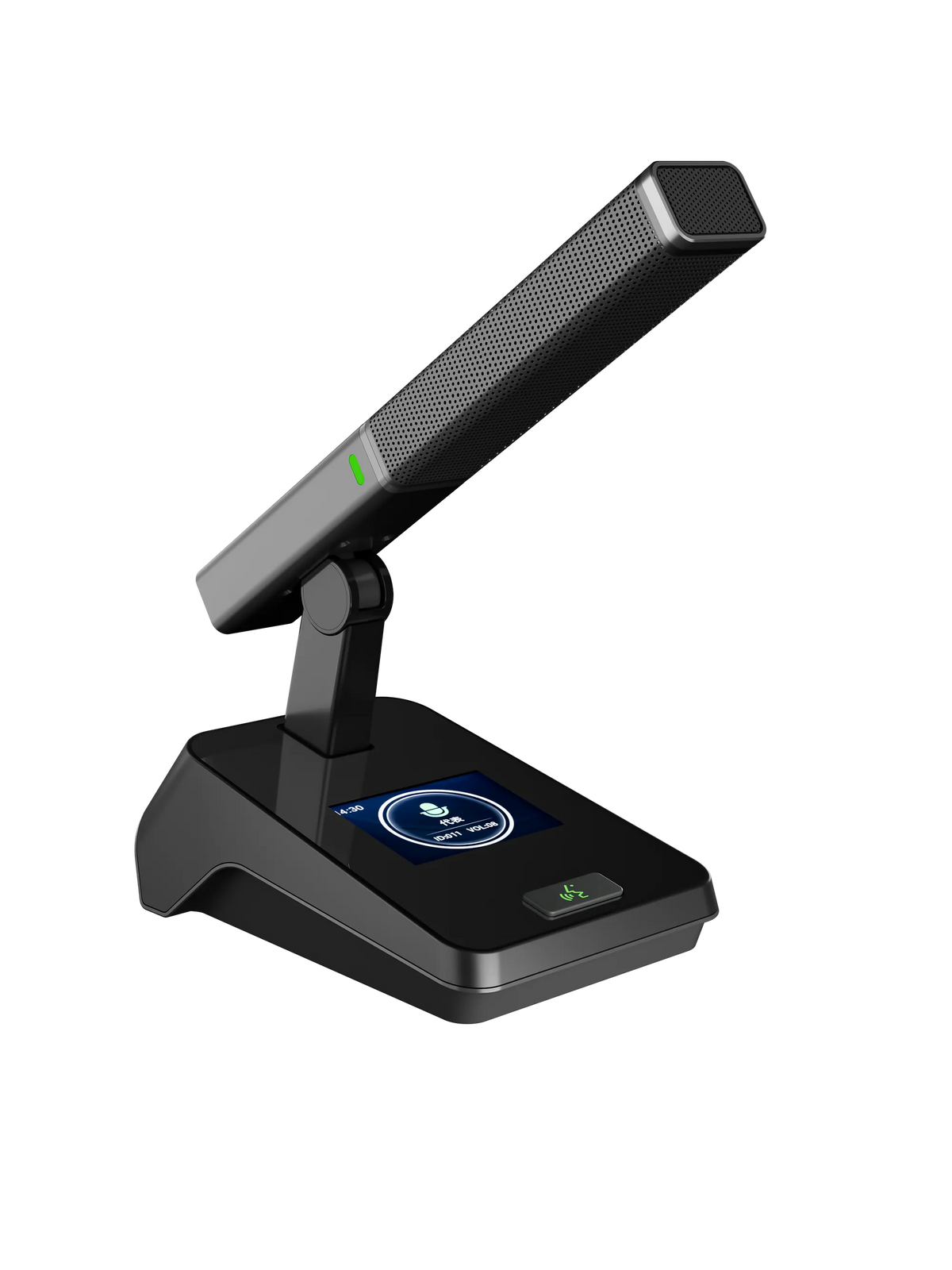

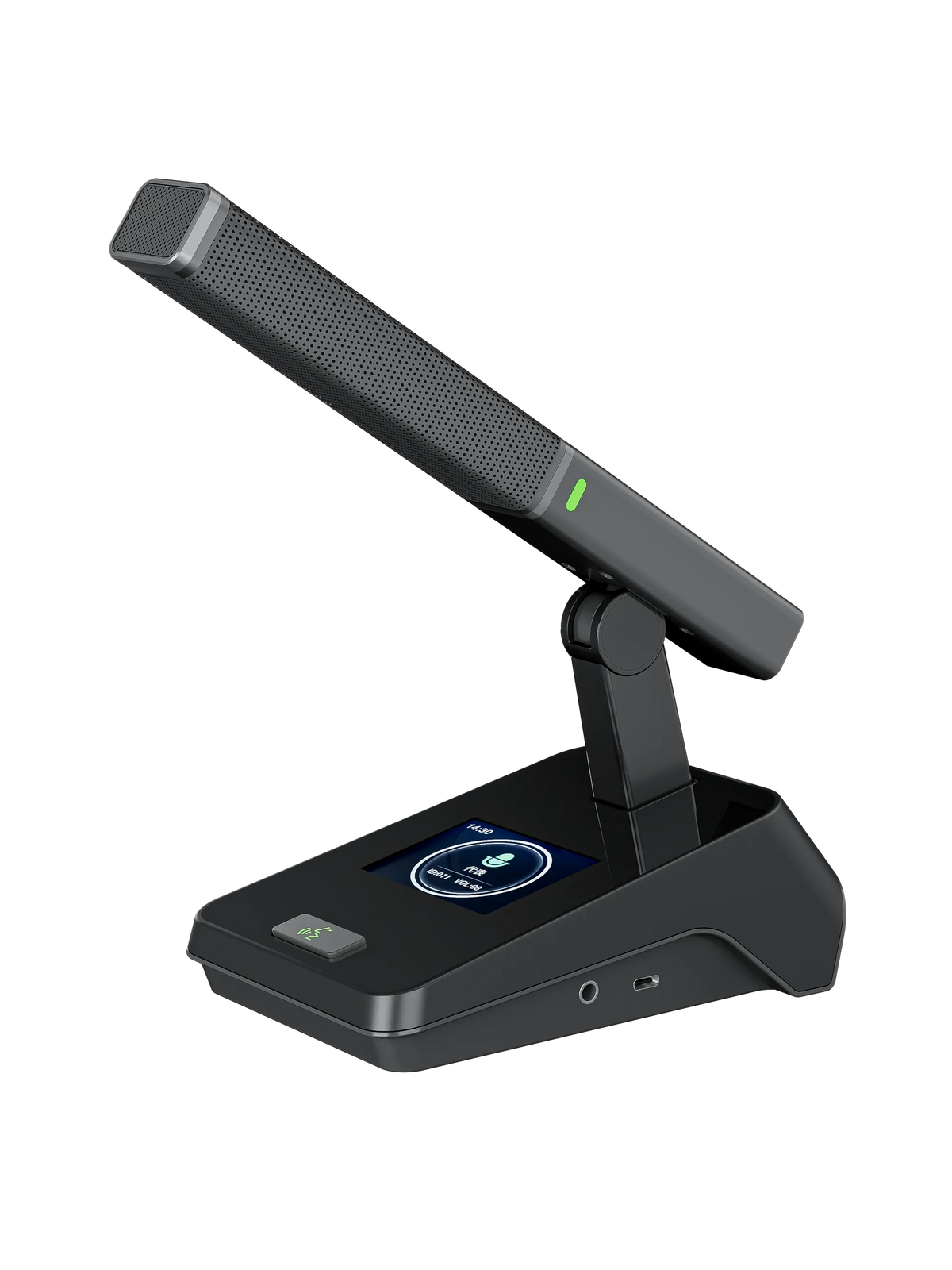

2.8-inch status display
Terminal role, ID, volume, time, and operating state are visible at the seat.
Request and speaking timer
Request-to-speak, queue indication, countdown, and count-up speaking workflows are supported.
Eight meeting modes
Supports free, rotation, limit, request, timer, voice-activated, PTT, and VIP operation through the controller.

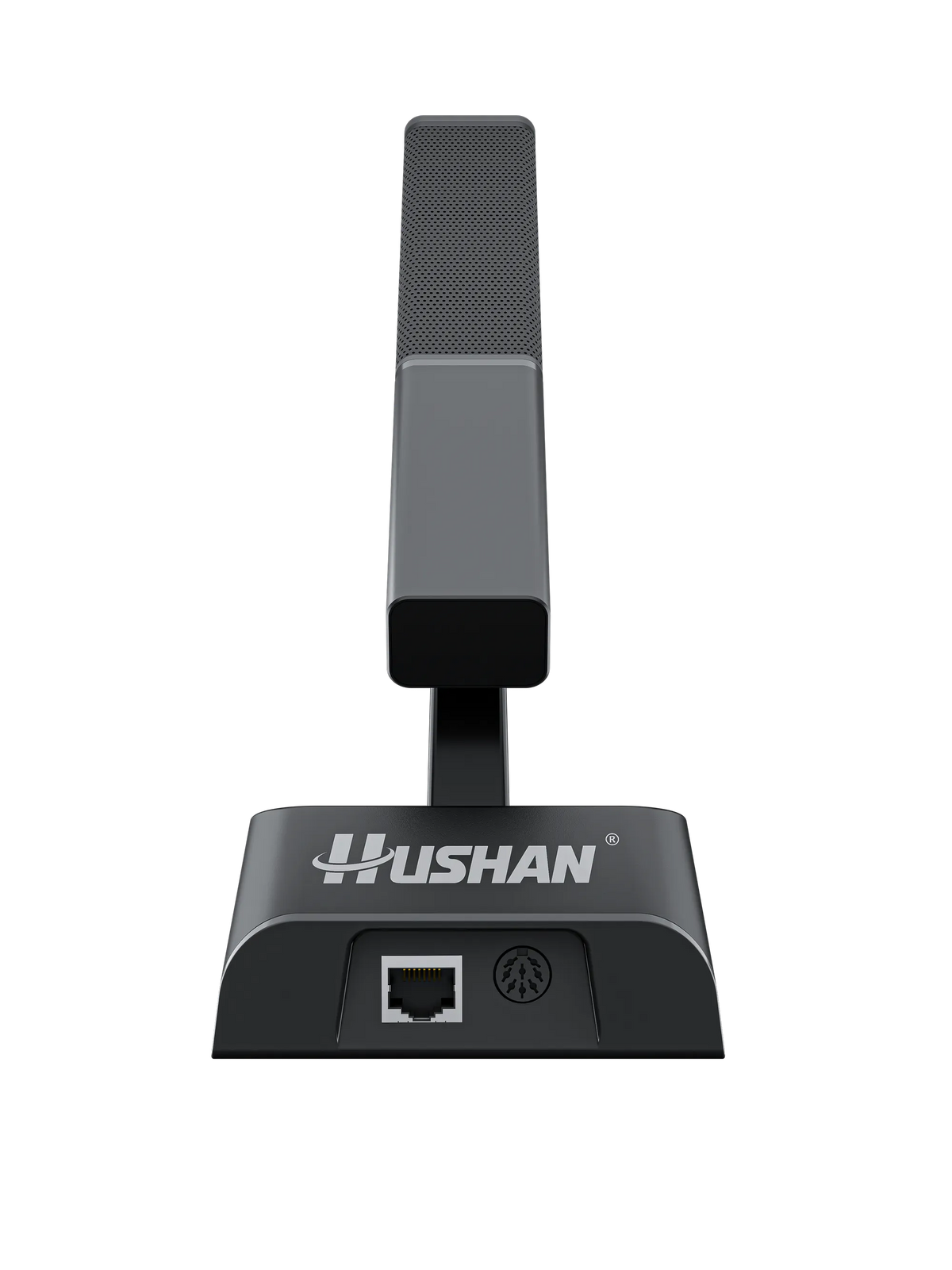

Dual wiring support
RJ45 and 8P-DIN interfaces allow hand-in-hand wiring, ring-loop backup, and mixed cabling layouts.
Anti-interference digital design
Digital processing and transmission help keep conference audio stable in rooms with phones and wireless devices.
Product Application
A compact 14 mm delegate terminal for managed conference speech.
The scene image is generated from the real source product photo and used only in the lower detail page to explain application context.
System Context
Designed as Part of a Managed Conference System
Smart MIC products are used together as a system: the controller manages roles and modes, terminals capture speech, receivers add wireless access, and expansion hubs scale wired seat counts.
Installation Use
Clear Operation for Formal Meeting Rooms
The system supports structured meetings in council chambers, corporate boardrooms, command rooms, education spaces, and other rooms where speaking order and audio reliability matter.
Project Workflow
How It Fits Into a Smart MIC Project
Connect the system core
Connect the master controller, receiver, expansion hub, and microphone terminals according to the required wired or wireless room layout.
Assign roles and meeting modes
Set terminal IDs, chairman/delegate/VIP roles, speaking limits, request queues, timers, and operating modes from the controller or management software.
Operate the meeting
Participants speak through managed terminals while the system handles microphone state, queue behavior, camera tracking support, and stable speech transmission.
Maintain and expand
Use hot-plug support, network expansion, and monitoring workflows to keep the system reliable as the room grows.
Applications
Where It Fits
Government and council chambers
Role-based chairman/delegate workflows, camera-tracking support, and structured speaking modes fit formal meeting rooms.
Corporate conference centers
Managed microphone operation and clean terminal layouts help executive rooms, boardrooms, and hybrid meeting spaces stay orderly.
Large conference systems
Expansion hubs, mixed wiring options, and hot-plug support help integrators scale the system across more seats and more rooms.
Transducer
14 mm condenser
Polar Pattern
Supercardioid
Frequency Response
60 Hz - 20 kHz
Sensitivity
-26 dB ?1 dB
