Wireless Receiver
Wireless access for mixed wired and wireless conference systems.
Smart MIC System

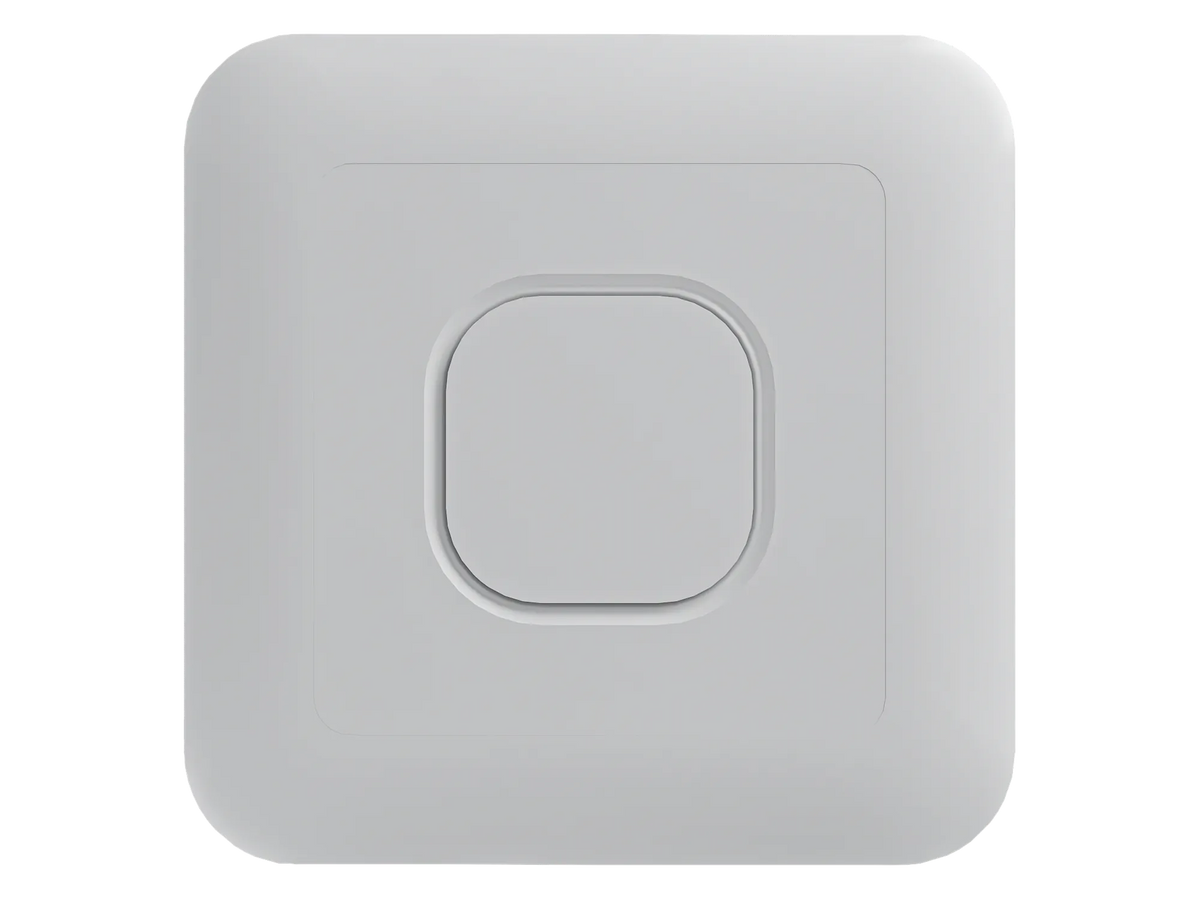

DS-630AP Wireless Receiver
HUSHAN
DS-630AP
¥699.00
DS-630AP is a wireless receiver for HUSHAN Smart MIC systems. It uses FSK wireless digital transmission, supports wired/wireless mixed conference systems, manages up to 999 wireless terminals, and connects to the master controller through a single CAT6 link.
Product documents available on request
Support scope confirmed for each order
Technical Specifications
| Communication | FSK |
| Frequency Range | 636.300 MHz - 679.500 MHz |
| Audio Channels | 5 channels; chairman quantity is not limited |
| Control Groups | 10 groups |
| Receiving Sensitivity | -100 dBm |
| Coverage | Ideal radius 30 m |
| Frequency Response | 50 Hz - 20 kHz |
| SNR | ?60 dBA |
| THD+N | ?0.3% |
| Power | <8W, DC12V 2A |
| Dimensions | 220 x 220 x 55 mm |
Smart MIC Xingyu Series
DS-630AP Wireless Receiver
DS-630AP is a wireless receiver for HUSHAN Smart MIC systems. It uses FSK wireless digital transmission, supports wired/wireless mixed conference systems, manages up to 999 wireless terminals, and connects to the master controller through a single CAT6 link.
Smart MIC conference ecosystem
Designed to work with HUSHAN master controllers, wired or wireless terminals, expansion hubs, and conference-room management workflows.
Built from HUSHAN product data
The page content is based on the provided product information file and avoids unsupported certification or performance claims.
636.300-679.500MHz
Frequency range
999
Wireless terminal management
30 m
Ideal coverage radius
?0.3%
THD+N
Wireless digital transmission
FSK digital processing and transmission are specified for clear wireless conference audio.
Wired/wireless mixed system
Wireless units can share conference management and camera-tracking workflows with wired units.
Large wireless capacity
The source document lists wireless system management capacity up to 999 terminals.
Speaking limit modes
Limit and rotation modes can set simultaneous speaking terminals from 1 to 5.
Single CAT6 controller link

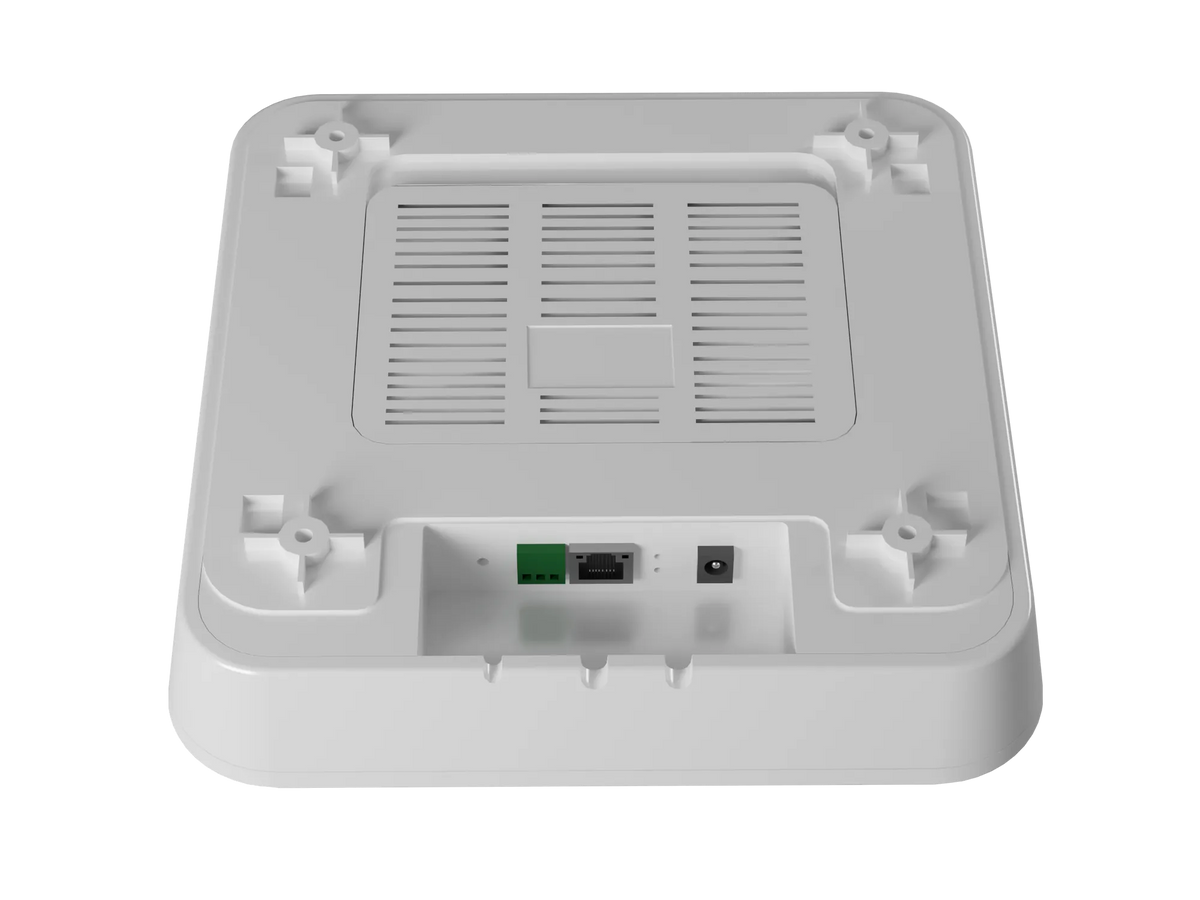

The LAN interface connects to the conference master controller for audio, control data, and power transmission.
Flexible output
Balanced Phoenix terminal audio output supports different system integration methods.
Product Application
Wireless access for mixed wired and wireless conference systems.
The scene image is generated from the real source product photo and used only in the lower detail page to explain application context.
System Context
Designed as Part of a Managed Conference System
Smart MIC products are used together as a system: the controller manages roles and modes, terminals capture speech, receivers add wireless access, and expansion hubs scale wired seat counts.
Installation Use
Clear Operation for Formal Meeting Rooms
The system supports structured meetings in council chambers, corporate boardrooms, command rooms, education spaces, and other rooms where speaking order and audio reliability matter.
Project Workflow
How It Fits Into a Smart MIC Project
Connect the system core
Connect the master controller, receiver, expansion hub, and microphone terminals according to the required wired or wireless room layout.
Assign roles and meeting modes
Set terminal IDs, chairman/delegate/VIP roles, speaking limits, request queues, timers, and operating modes from the controller or management software.
Operate the meeting
Participants speak through managed terminals while the system handles microphone state, queue behavior, camera tracking support, and stable speech transmission.
Maintain and expand
Use hot-plug support, network expansion, and monitoring workflows to keep the system reliable as the room grows.
Applications
Where It Fits
Government and council chambers
Role-based chairman/delegate workflows, camera-tracking support, and structured speaking modes fit formal meeting rooms.
Corporate conference centers
Managed microphone operation and clean terminal layouts help executive rooms, boardrooms, and hybrid meeting spaces stay orderly.
Large conference systems
Expansion hubs, mixed wiring options, and hot-plug support help integrators scale the system across more seats and more rooms.
Communication
FSK
Frequency Range
636.300 MHz - 679.500 MHz
Audio Channels
5 channels; chairman quantity is not limited
Control Groups
10 groups
