Compact amplifier for teaching audio
XY260D brings microphone inputs, line sources, Bluetooth, USB playback, speaker output, EQ, phantom power, and protection circuits into one 1U classroom amplifier.
Classroom Speaker Amp

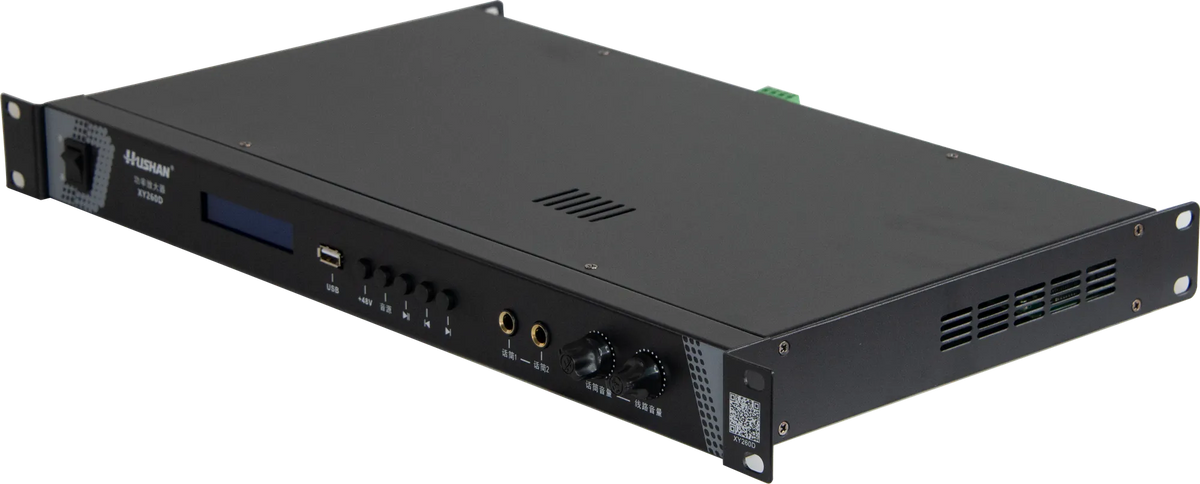

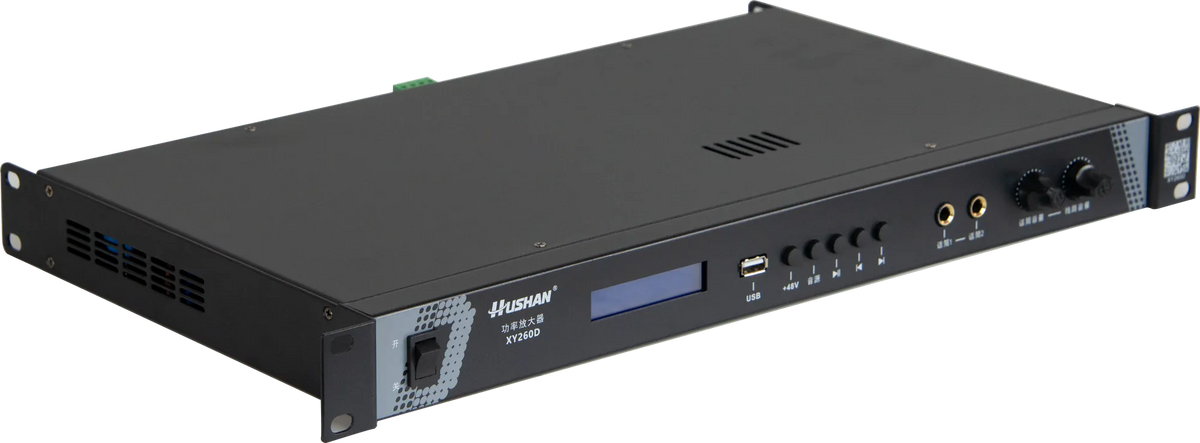

XY260D Classroom Mixer Power Amplifier
HUSHAN
XY260D
¥349.00
1U classroom mixer power amplifier with microphone and line mixing, Bluetooth, USB MP3 playback, +48V phantom power, RS232 control, one-key mute, and 2 x 60W / 2 x 120W output options.
Product documents available on request
Support scope confirmed for each order
Technical Specifications
| Rated Power | 2 x 60W RMS @ 8 ohm / 2 x 120W RMS @ 4 ohm |
| THD+N | <=0.5% |
| Line Frequency Response | 20 Hz - 20 kHz |
| Mic Frequency Response | 80 Hz - 16 kHz |
| Bluetooth | Bluetooth 5.0 |
| USB Playback | MP3 |
| Phantom Power | +48V switchable |
| Control Interface | RS-232, one-key mute contact closure |
| Power Supply | AC 220-240V, 50/60 Hz |
Education Audio
Compact Mixer Amplifier for Daily Classroom Sound
XY260D combines microphone mixing, line inputs, Bluetooth, USB MP3 playback, RS232 control, one-key mute, +48V phantom power, digital amplification, and protection circuits in a compact 1U chassis for classrooms and training rooms.
Simple daily control for teachers and technicians
Classrooms need speech and media to work every day. One-key mute, RS232, USB priority, and clear front-panel controls keep operation straightforward.
Classrooms, training rooms, small meeting spaces
Use it where a room needs reliable voice reinforcement and media playback without a complex DSP rack.
2 x 60 W
Output @ 8 ohm
2 x 120 W
Output @ 4 ohm
1U
Rack Form
>=80 dB
Signal-to-Noise
Classroom-ready power output
Provides 2 x 60W at 8 ohm or 2 x 120W at 4 ohm for typical teaching spaces and small rooms.
Multiple input sources
Two wired microphone inputs, one wireless microphone input, three line inputs, Bluetooth, and USB MP3 playback cover common classroom devices.
Independent control
Front-panel controls support separate level adjustment and high/low EQ so teachers or technicians can tune speech and media quickly.
Teaching workflow shortcuts
One-key mute, USB priority, RS232 control, and adjustable left-channel output make it practical for classroom integration.
+48V phantom power
Supports microphones that require phantom power, improving compatibility with installed teaching microphones.
Efficient protected amplifier
Switching power supply, digital amplification, preamp processing, and protection circuits support stable daily use.
Education Audio
A Simple Audio Core for Classrooms and Training Rooms
XY260D is built for the daily teaching workflow: microphones, media playback, Bluetooth, USB MP3, RS232 control, one-key mute, and speaker output in one compact amplifier.
Classroom Use
Built Around Teaching, Not Showroom Demos
XY260D is designed for the equipment cabinet or teacher station: connect microphones, computer audio, media playback, Bluetooth, and classroom speakers with a control layout that stays simple for daily use.

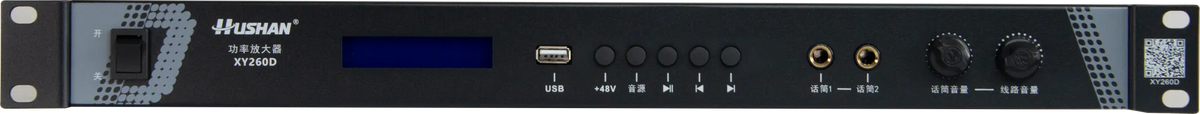

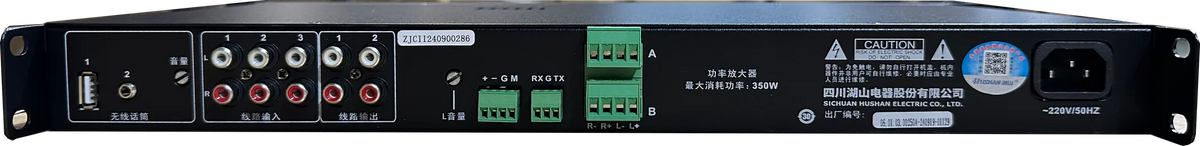

Hardware Layout
Clear Front and Rear I/O for Fast Installation
The amplifier provides wired and wireless microphone inputs, line inputs, line outputs, power outputs, RS232, USB playback, Bluetooth, and level/EQ control in a compact 1U unit.
Room Flow
How XY260D Works in a Classroom
Connect sources
Wire microphones, line sources, Bluetooth, USB playback, and classroom media devices.
Drive speakers
Power installed speakers directly from the amplifier output.
Tune speech and media
Adjust independent volume plus high and low EQ for teaching voice and program audio.
Control daily use
Use one-key mute, RS232, and USB priority for common classroom routines.
Applications
Best-Fit Rooms
Classrooms
Speech reinforcement and multimedia playback for daily teaching.
Training rooms
Mix microphones and presentation audio with simple front-panel operation.
Small meeting spaces
A compact 1U amplifier for rooms that need reliable audio without a complex DSP rack.
Rated output
2 x 60W at 8 ohm or 2 x 120W at 4 ohm.
Audio response
Line input 20 Hz-20 kHz +/-3 dB; microphone input 80 Hz-16 kHz +/-3 dB.
Power
AC 220V / 50 Hz with 180-242V operating range.
